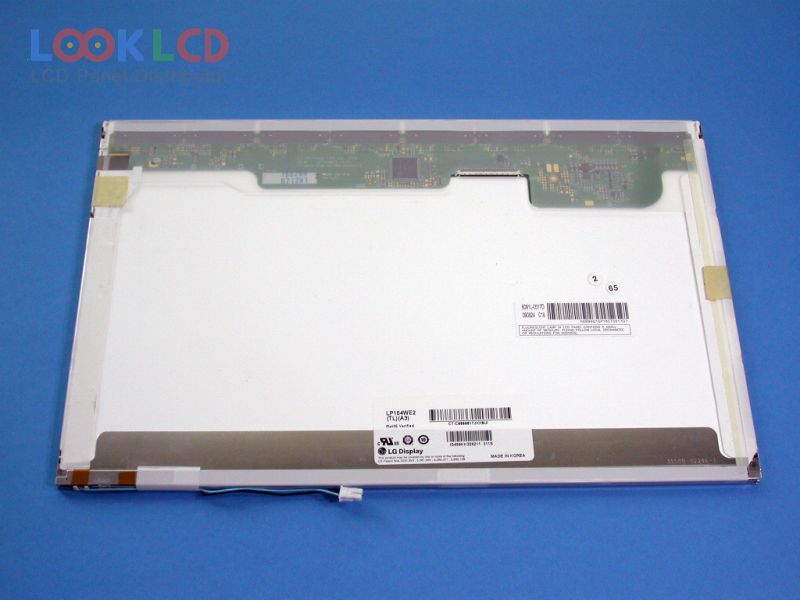

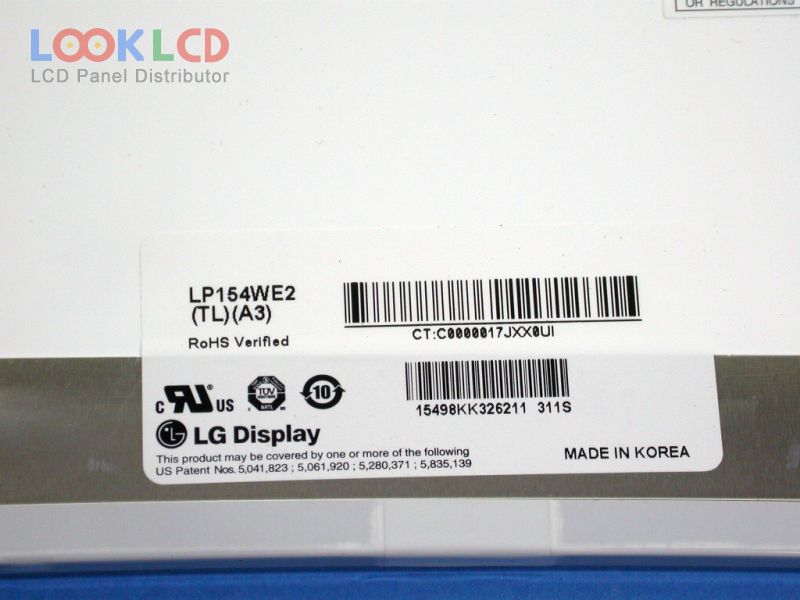

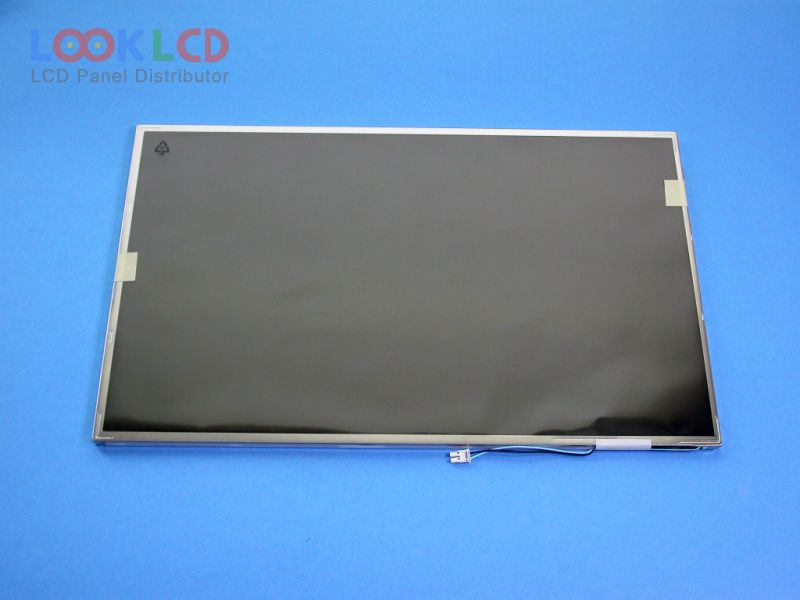

| Varenummer | LP154WE2-TLA3 |
| Mærke | LG Display |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1680×1050 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP154WE2-TLA3 7 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1680(RGB)×1050 , WSXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.38×207.11 mm |
| omrids | 344×222×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP154W01-A3 | LG Display | 15.4 | 1280×800 |
| LP154W01-TLAA | LG Display | 15.4 | 1280×800 |
| LP154W01-TLE5 | LG Display | 15.4 | 1280×800 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP154WE2-TLA7 | LG Display | 15.4 | 1680×1050 |
| LP154WE2-TLB1 | LG Display | 15.4 | 1680×1050 |
| LP154WP2-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WX4-TLA1 | LG Display | 15.4 | 1280×800 |
| LP154WX7-TLA1 | LG Display | 15.4 | 1280×800 |
| LP154WX7-TLB3 | LG Display | 15.4 | 1280×800 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| B170UW02 V0 | AUO | 17.0 | 1920×1200 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| CLAA154WB09A | CPT | 15.4 | 1280×800 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| LP140WF1-SPU1 | LG Display | 14.0 | 1920×1080 |
| LP156WH2-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LTN150XB-L03 | Samsung | 15.0 | 1024×768 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
