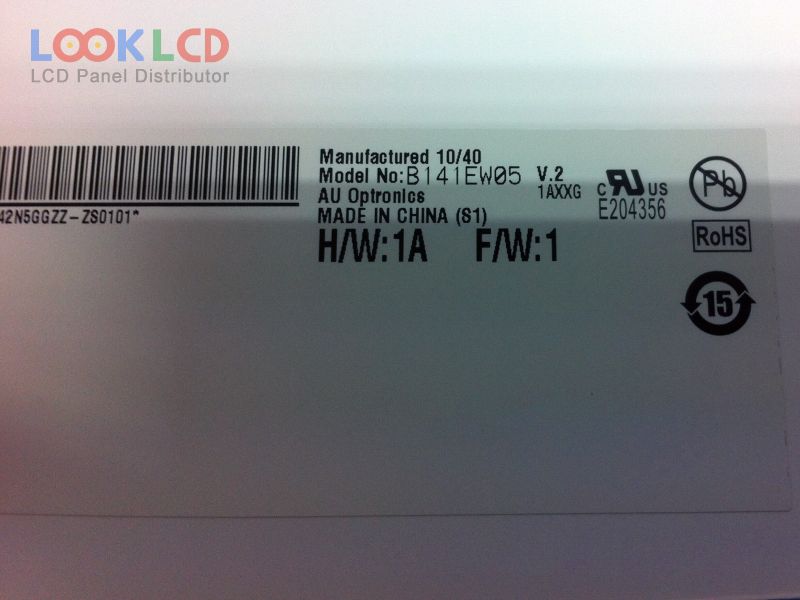

| Varenummer | B141EW05 V2 |
| Mærke | AUO |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B141EW05 V2 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 303.36×189.6 mm |
| omrids | 319.5×205.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 6/2 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B141EW02 V3 | AUO | 14.1 | 1280×800 |
| B141EW04 V4 | AUO | 14.1 | 1280×800 |
| B141EW04 V5 | AUO | 14.1 | 1280×800 |
| B141EW04 V6 | AUO | 14.1 | 1280×800 |
| B141EW04 V7 | AUO | 14.1 | 1280×800 |
| B141EW05 V0 | AUO | 14.1 | 1280×800 |
| B141EW05 V2 | AUO | 14.1 | 1280×800 |
| B141EW05 V3 | AUO | 14.1 | 1280×800 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| LP121WX3-TPB1 | LG Display | 12.1 | 1280×800 |
| LP133WH1-TLC1 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLC1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| LP171WPA-TLA1 | LG Display | 17.1 | 1440×900 |
| LTN140AT21-002 | Samsung | 14.0 | 1366×768 |
| LTN160AT02-H02 | Samsung | 16.0 | 1366×768 |
| QD15TL04 Rev.05 | QDI | 15.4 | 1280×800 |
