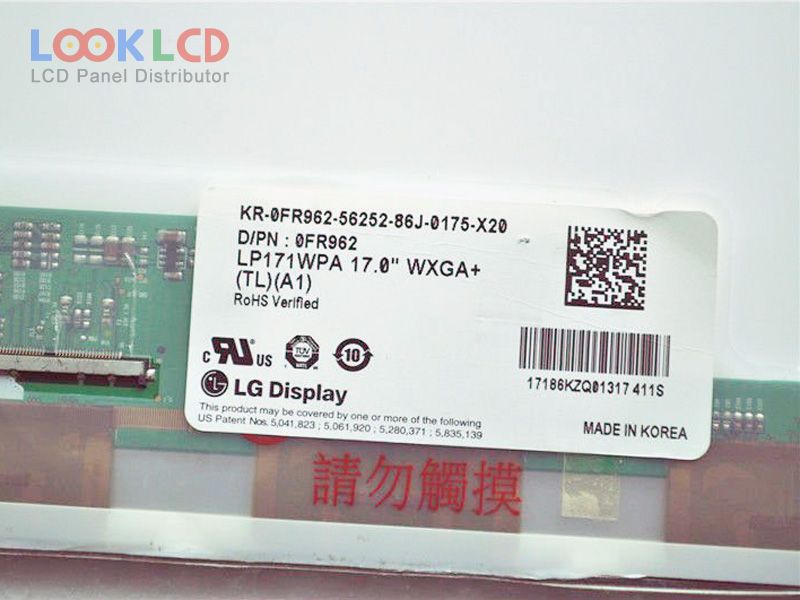

| Varenummer | LP171WPA-TLA1 |
| Mærke | LG Display |
| Størrelse | 17.1 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 270 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP171WPA-TLA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.1 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×255.5×7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 270 cd/m² (Min.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 11S6PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
