| Varenummer | B156ZAN03.2 |
| Mærke | AUO |
| Størrelse | 15.6 |
| Ansøgning | Laptop |
| Løsning | 3840×2160 |
| Sammensætning | LTPS TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1200:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| mærke | AUO |
| model | B156ZAN03.2 (AUO32EB) |
| diagonal størrelse | 15.6 inch |
| type | LTPS TFT-LCD, LCM |
| pixel format | 3840(RGB)×2160 [UHD] 283PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 344.218(H)×193.622(V) mm |
| omrids dim. | 350.66(H)×216.45(V) ×2.6(D) mm |
| bezel område | - |
| behandling | Antiglare |
| luminans | 400 cd/m² (Typ.) |
| kontrastforhold | 1200:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| driftstilstand | AHVA, Normally Black, Transmissive |
| støtte farve | 16.7M 100% Adobe RGB |
| lyskilde | WLED , 15K hours , With LED Driver |
| form stil | Slim (PCBA Flat, T≤3.2mm) |
| designet til | Laptop |
| billedhastighed | 60Hz |
| berøringspanel | Without |

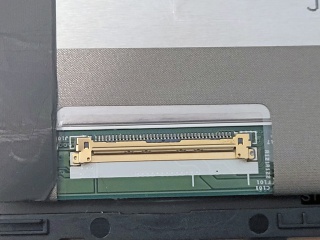

| interface type | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
