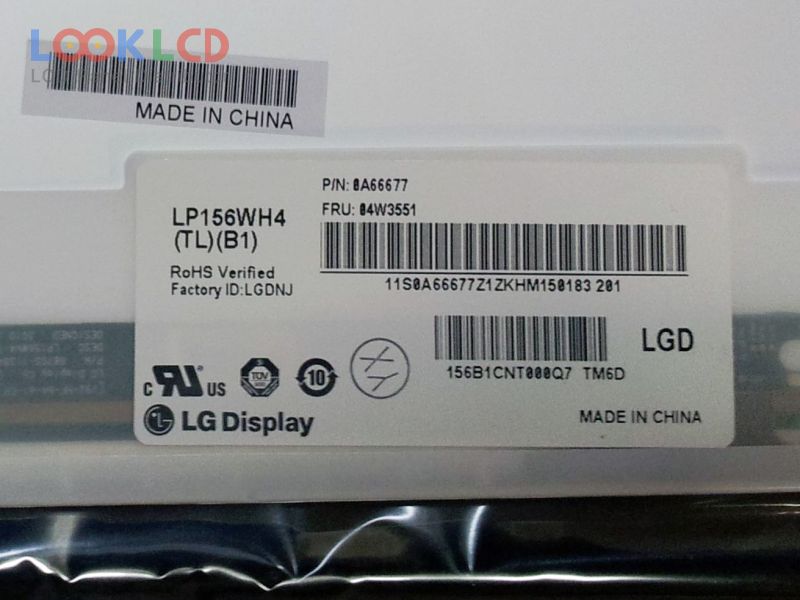

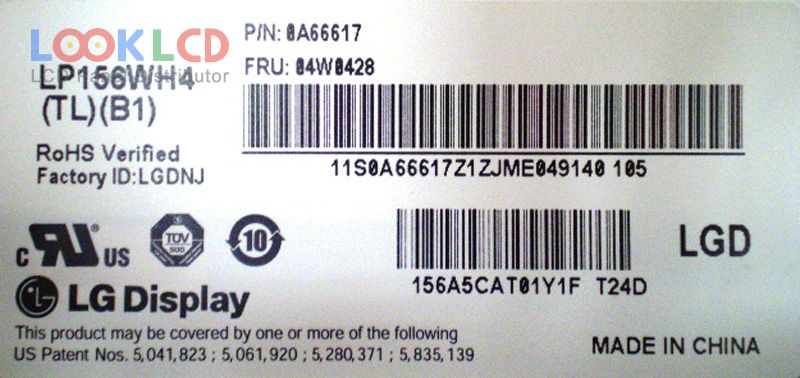

| Varenummer | LP156WH4-TLB1 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP156WH4-TLB1 61 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 stringsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP156WD1-TLB1 | LG Display | 15.6 | 1600×900 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLSA | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| CLAA141WB05A | CPT | 14.1 | 1280×800 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HSD160PHW1-B00 | HannStar | 16.0 | 1366×768 |
| LP133WX2-TLG6 | LG Display | 13.3 | 1280×800 |
| LP156WH8-TLA1 | LG Display | 15.6 | 1366×768 |
| LP171WX2-TLB1 | LG Display | 17.1 | 1440×900 |
| LTN140AT20-P02 | Samsung | 14.0 | 1366×768 |
| LTN150U2-L02 | Samsung | 15.0 | 1600×1200 |
| LTN184KT01-A01 | Samsung | 18.4 | 1680×945 |
| N140FGE-L31 | Innolux | 14.0 | 1600×900 |
