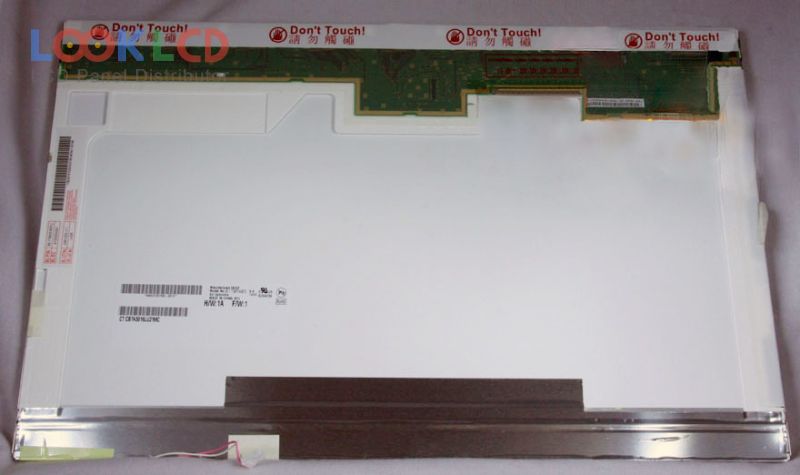

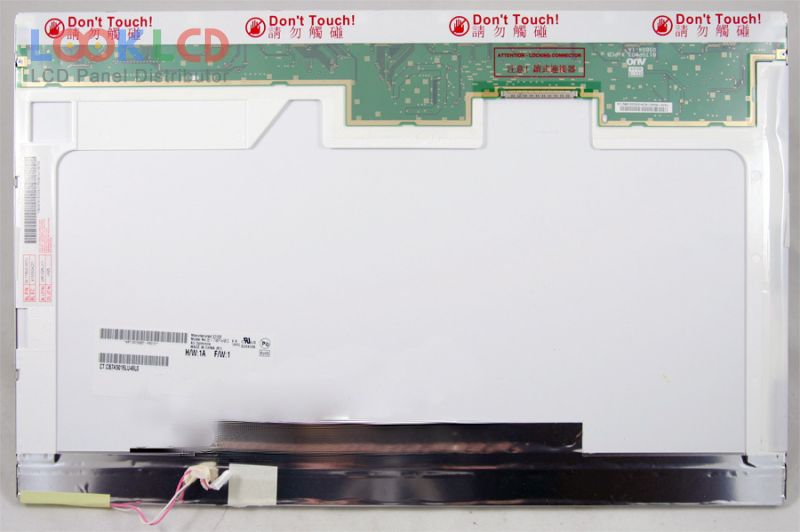

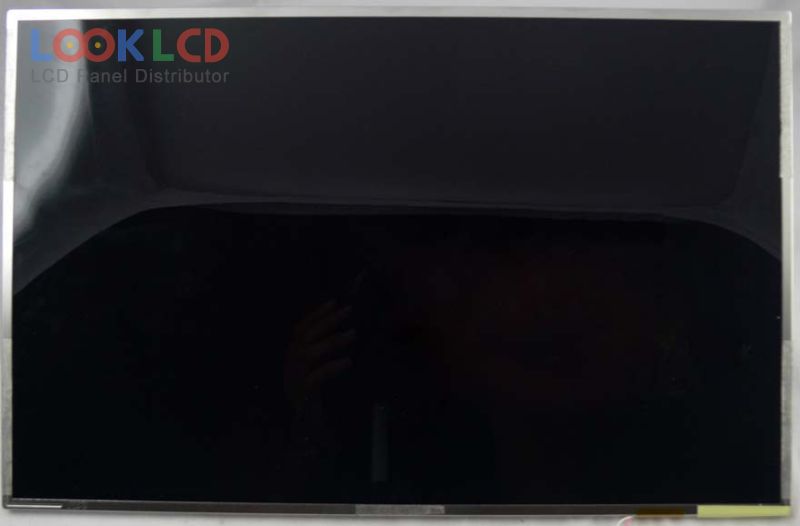

| Varenummer | B170PW03 V4 |
| Mærke | AUO |
| Størrelse | 17.0 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B170PW03 V4 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×244.5×6.8 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 12/4 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
