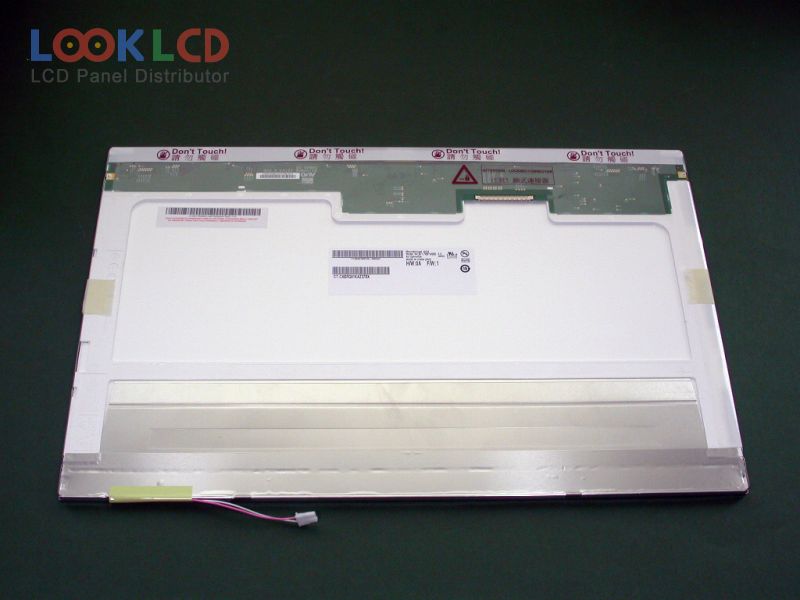

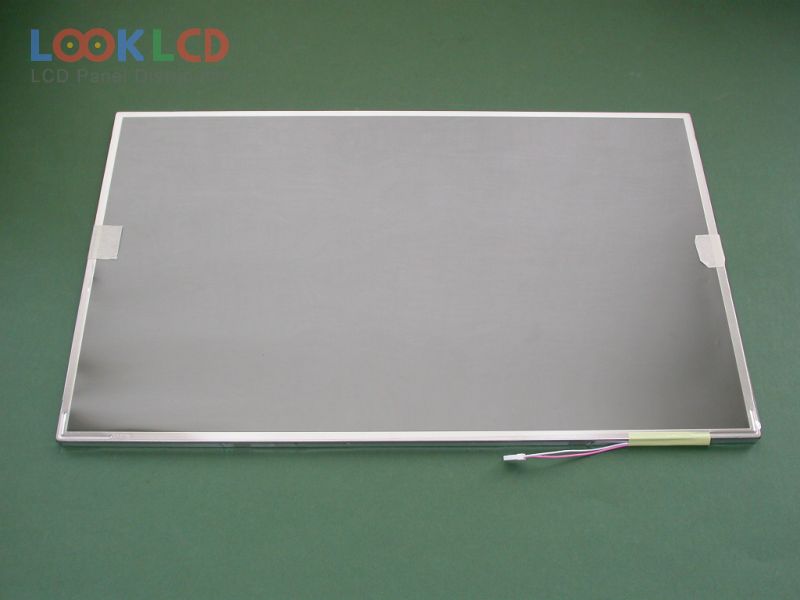

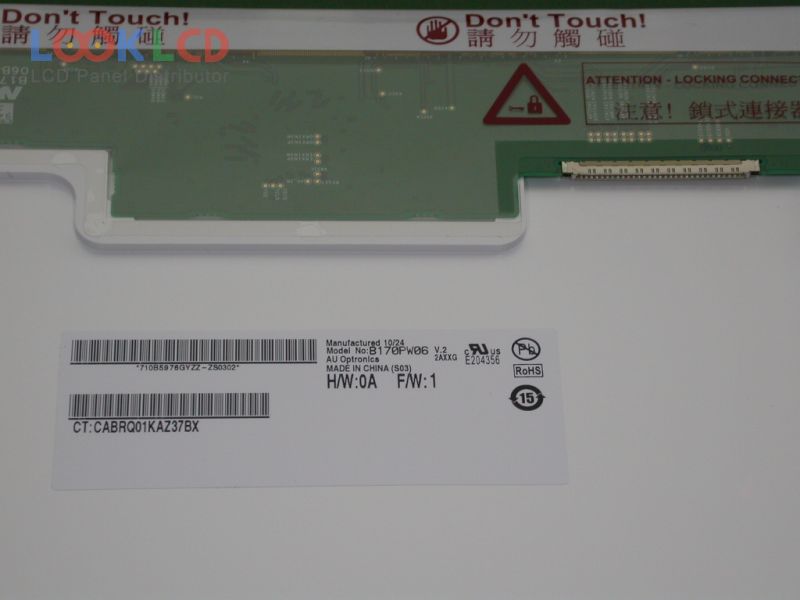

| Varenummer | B170PW06 V2 |
| Mærke | AUO |
| Størrelse | 17.0 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B170PW06 V2 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×244.5×6.7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 2/6 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B170PW01 V1 | AUO | 17.0 | 1440×900 |
| B170PW02 V0 | AUO | 17.0 | 1440×900 |
| B170PW03 V0 | AUO | 17.0 | 1440×900 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| B170PW03 V3 | AUO | 17.0 | 1440×900 |
| B170PW03 V4 | AUO | 17.0 | 1440×900 |
| B170PW03 V5 | AUO | 17.0 | 1440×900 |
| B170PW06 V2 | AUO | 17.0 | 1440×900 |
| B170PW06 V3 | AUO | 17.0 | 1440×900 |
| B170PW07 V0 | AUO | 17.0 | 1440×900 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| LP150X08-B3 | LG Display | 15.0 | 1024×768 |
| LP154WX4-TLC3 | LG Display | 15.4 | 1280×800 |
| LP156WD1-TLD3 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| LTN160HT03-001 | Samsung | 16.0 | 1920×1080 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
