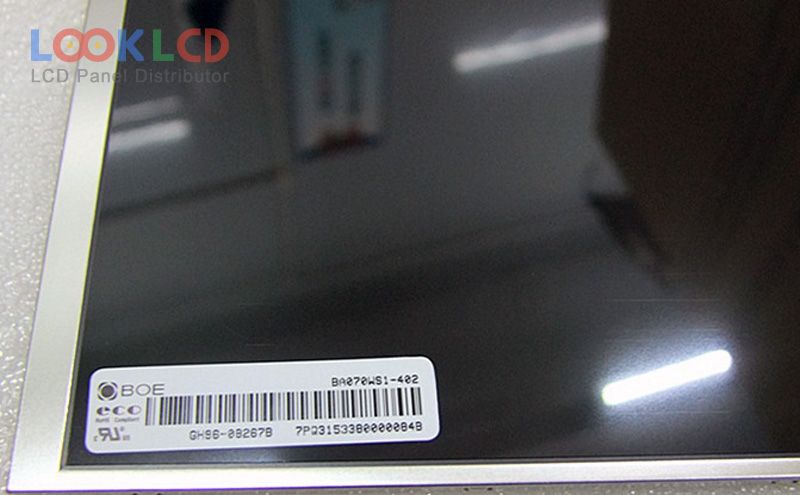

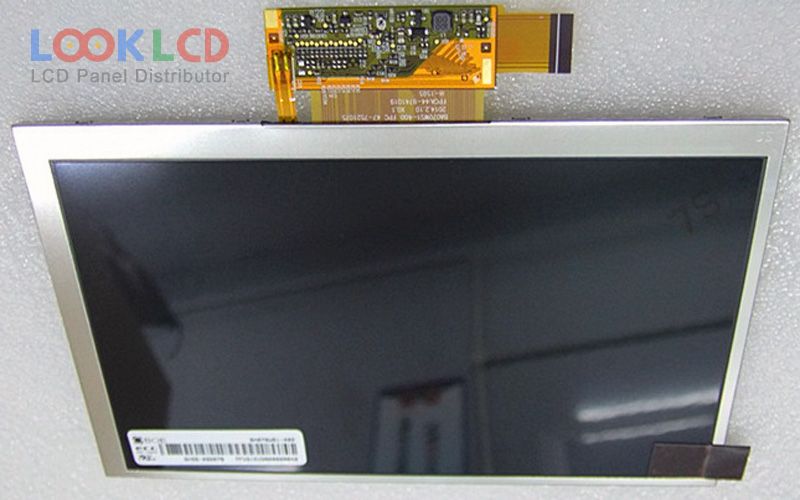

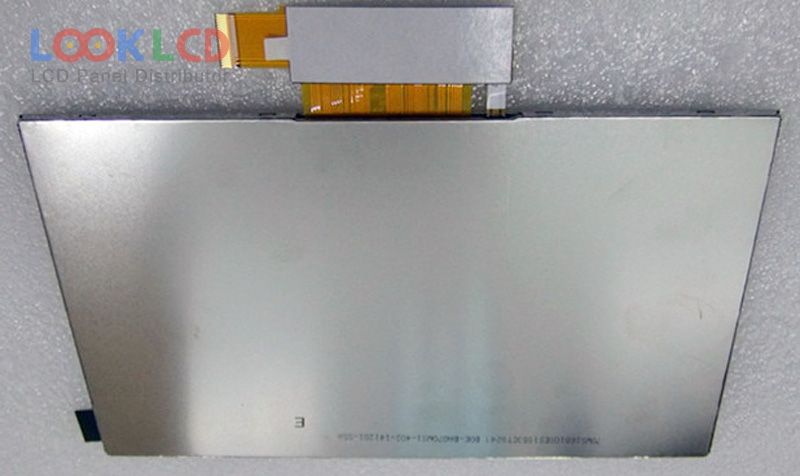

| Varenummer | BA070WS1-402 |
| Mærke | BOE |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | BA070WS1-402 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 167.25×104.65×3 mm |
| overflade | Hard coating |
| lysstyrke | |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | MP4 |
