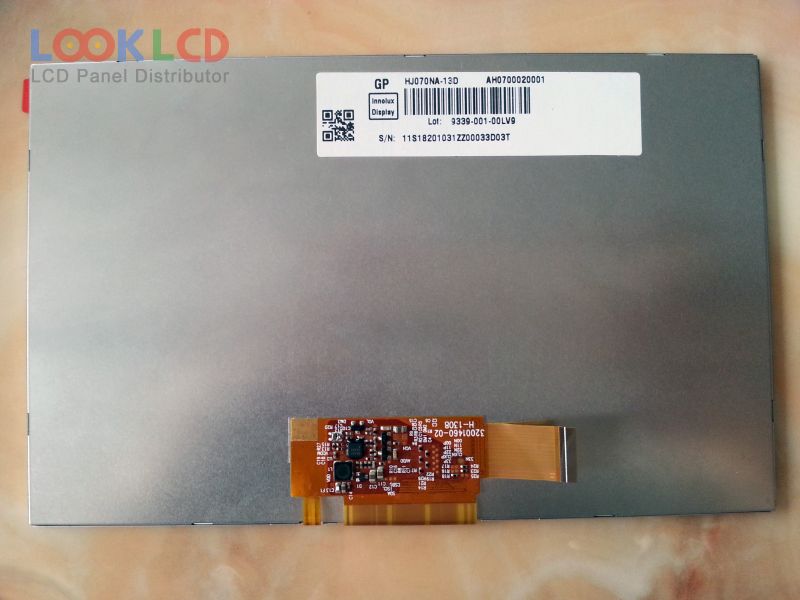

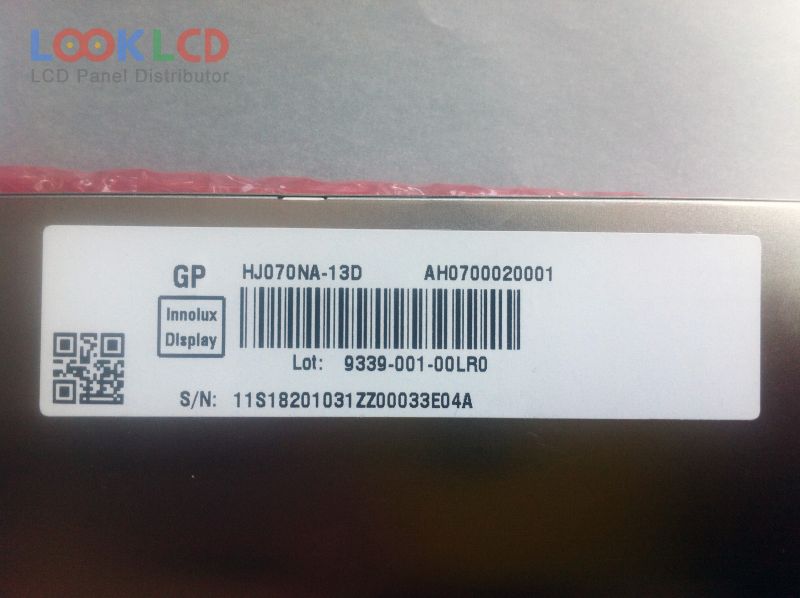

| Varenummer | HJ070NA-13D |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | HJ070NA-13D 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 165.25×104.65×2.9 mm |
| overflade | Glare (Haze 0%) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/75/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | MP4 |
| 70WVW2T | SII | 7.0 | 800×480 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| HJ070IA-01I | Innolux | 7.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| NDS0708001280-31 | SEBO | 7.0 | 800×1280 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| A070VW08 V0 | AUO | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HV070WS1-100 | HYDIS | 7.0 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
