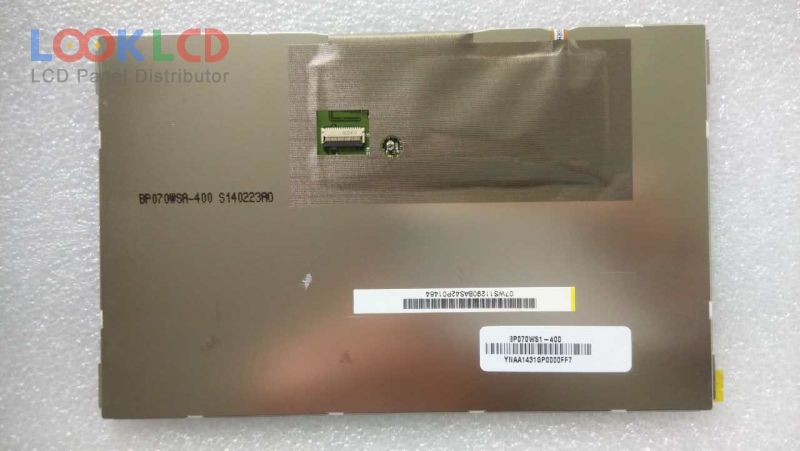

| Varenummer | BP070WS1-400 |
| Mærke | BOE |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | BOE |
| panel model | BP070WS1-400 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | ADS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 162.8×102.9×4.2 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193152% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S4PWLEDEmbedded (LED Driver) |
| signal interface | MIPI (4 data lanes), 31 pins |
| indgangsspænding | 3.7V (Typ.) |
| Ansøgning | PAD |
