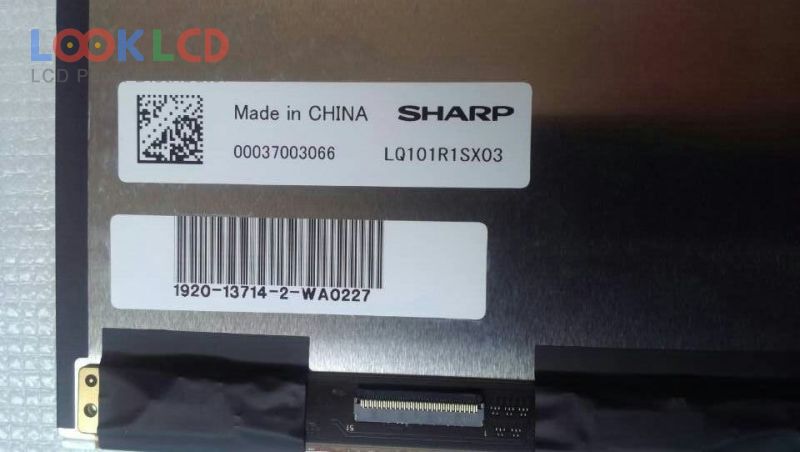

| Varenummer | LQ101R1SX03 |
| Mærke | SHARP |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 2560×1600 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | SHARP |
| panel model | LQ101R1SX03 |
| paneltype | IGZO TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 2560(RGB)×1600 , WQXGA |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 228.2×148.6×4.45 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S6PWLEDWithout Driver |
| signal interface | MIPI (2 ch, 4 data lanes), 51 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLQE | LG Display | 9.7 | 1024×768 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| VVX07F015M00 | Panasonic | 7.0 | 1200×1920 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
