| Varenummer | BP101WX1-100 |
| Mærke | BOE |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | BP101WX1-100 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | ADS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 227.56×148.2 mm |
| overflade | Hard coating (3H), Antireflection |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193150% |
| responstid | 24 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥20)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S6PWLEDWithout Driver |

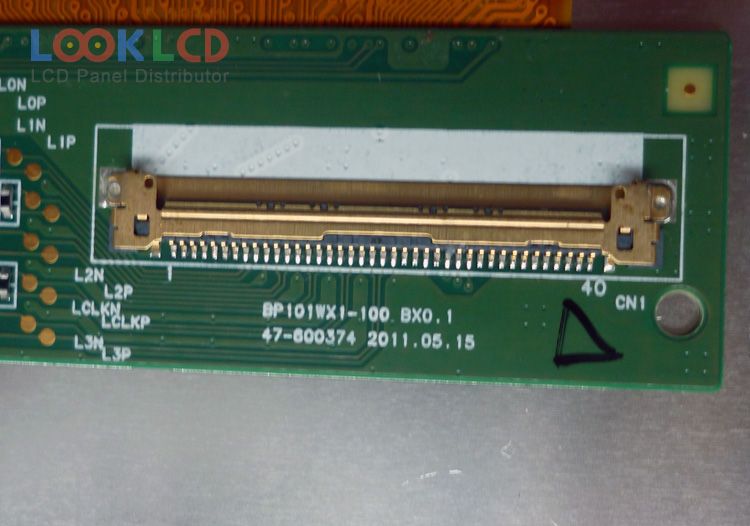

| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
