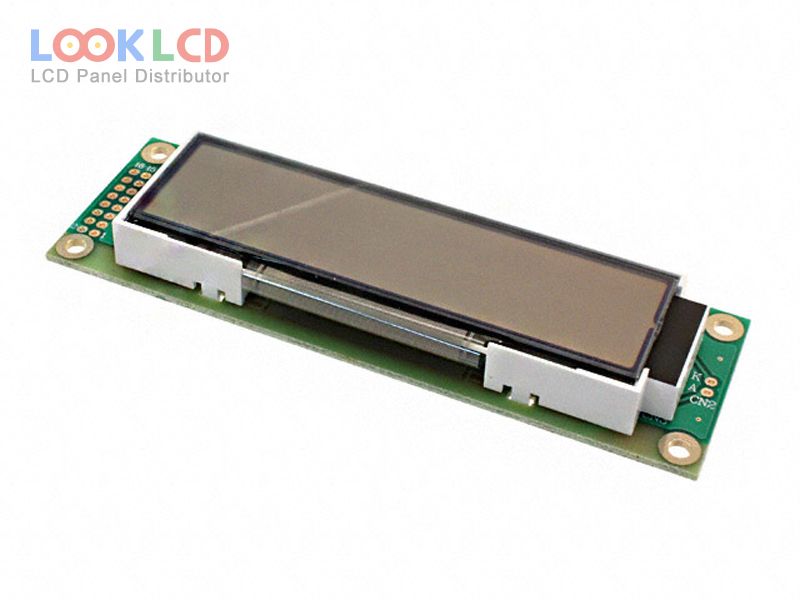

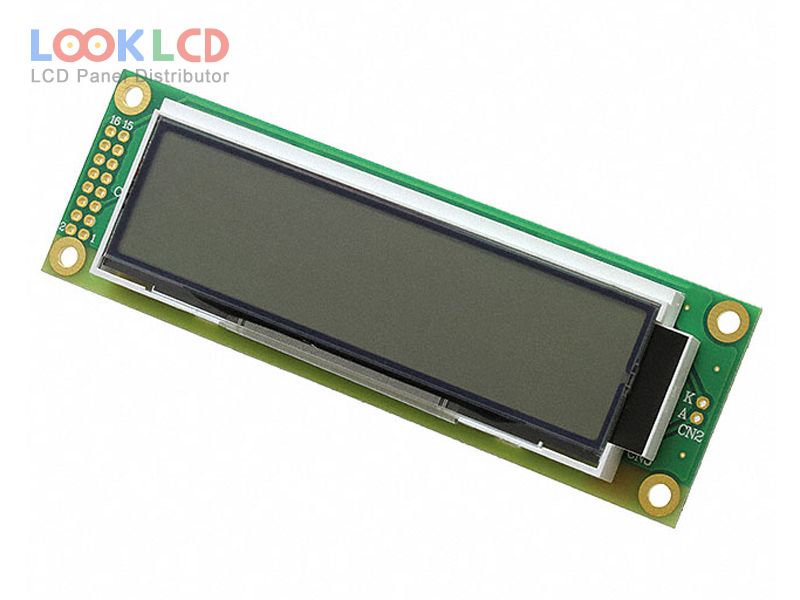

| Varenummer | C-51505NFJ-SLG-AHN |
| Mærke | Kyocera |
| Størrelse | 3.0 |
| Ansøgning | |
| Løsning | 20×2 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 5:1 |
| Farver | Monochrome |
| Baggrundsbelysning | G-LED |
| Interface | CPU |
| panel mærke | Kyocera |
| panel model | C-51505NFJ-SLG-AHN 1 Compatible model |
| paneltype | FSTN-LCD , LCM |
| panelstørrelse | 3.0 inch |
| visningsformat | 20 characters × 2 lines |
| visningstilstand | STN, Black/White (Positive), Transflective |
| vise skrifttyper | 5×8 dots |
| tegnstørrelse | 3.235×5.585 mm |
| karakter tonehøjde | 3.8×5.95 mm |
| aktivt område | 75.435×11.535 mm |
| bezel område | 83.0×18.6 mm |
| omrids | 116×37×15.9 mm |
| lysstyrke | |
| kontrastforhold | 5:1 (Typ.)(Transmissive) |
| vise farver | Monochrome |
| responstid | 80/110 (Typ.)(Tr/Td) |
| lampe type | 1 pcsG-LEDWithout Driver |
| signal interface | 8-bit parallel, 16 pins |
| indgangsspænding | 5.0V (Typ.) |
