| Varenummer | C058GW01 V0 |
| Mærke | AUO |
| Størrelse | 5.8 |
| Ansøgning | CNS |
| Løsning | 400×240 |
| Sammensætning | LCM |
| Lysstyrke | 620 |
| CR | |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |

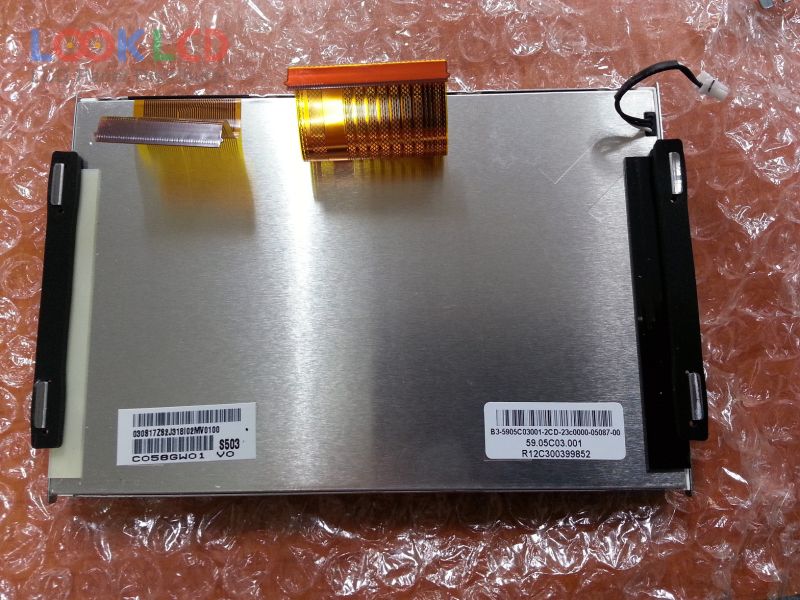

| panel model | C058GW01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.8 inch |
| løsning | 400(RGB)×240 , WQVGA |
| visningstilstand | AMVA, Normally Black, Transmissive |
| aktivt område | 126×75.6 mm |
| omrids | 140×93×11.05 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 620 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 16.2M (6-bit + Hi-FRC), CIE193150% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 64 pins |
| indgangsspænding | 3.3/12.6/15.5/-9.0V (Typ.)(VDDIO/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| AM-1024600KTMQW-04H | AMPIRE | 7.0 | 1024×600 |
| C070FW01 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| LQ6BW558T | SHARP | 5.8 | 480×234 |
| ND078-101A1 | SEBO | 7.8 | 1280×400 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
