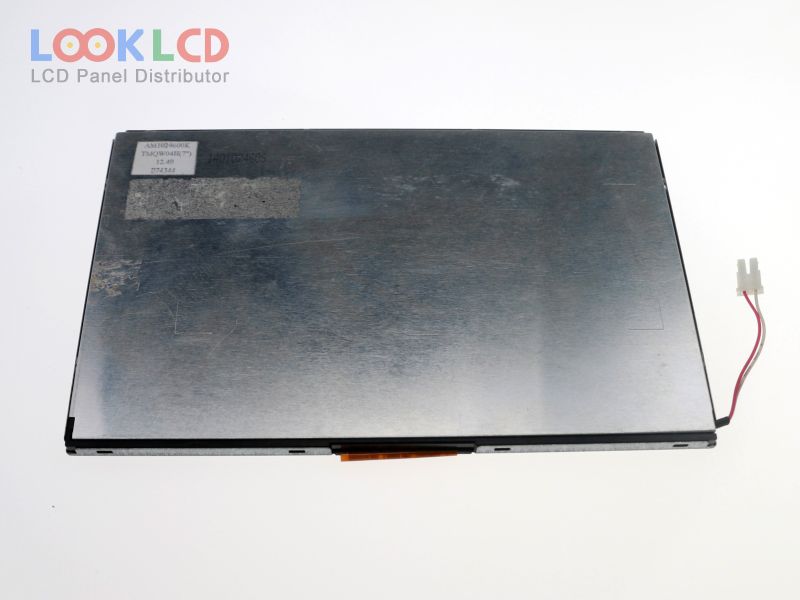

| Varenummer | AM-1024600KTMQW-04H |
| Mærke | AMPIRE |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 1000 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AMPIRE |
| panel model | AM-1024600KTMQW-04H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 165.5×104.44×5.3 mm |
| overflade | Glare (Haze 0%), Hard coating |
| lysstyrke | 1000 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S3PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
