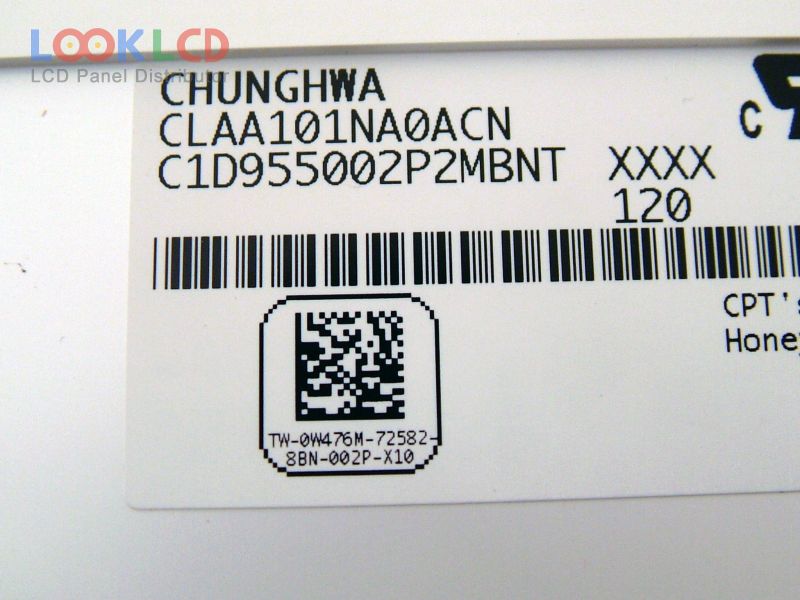

| Varenummer | CLAA101NA0ACN |
| Mærke | CPT |
| Størrelse | 10.1 |
| Ansøgning | NOPC |
| Løsning | 1024×576 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA101NA0ACN 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×576 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 235×143×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
| Ansøgning | NOPC |
| CLAA100XA22XV | CPT | 10.0 | 1024×768 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
| A089SW01 V0 | AUO | 8.9 | 1024×600 |
| B089AW01 V0 | AUO | 8.9 | 1024×600 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| LP116WH4-TJA3 | LG Display | 11.6 | 1366×768 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
