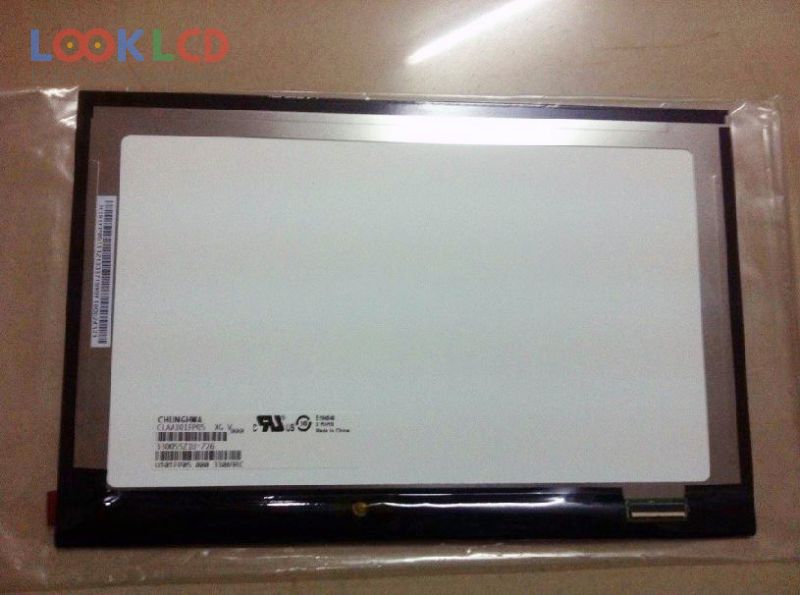

| Varenummer | CLAA101FP05 |
| Mærke | CPT |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 370 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | CPT |
| panel model | CLAA101FP05 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 216.576×135.36 mm |
| omrids | 227.72×148.65×4.55 mm |
| overflade | Hard coating |
| lysstyrke | 370 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

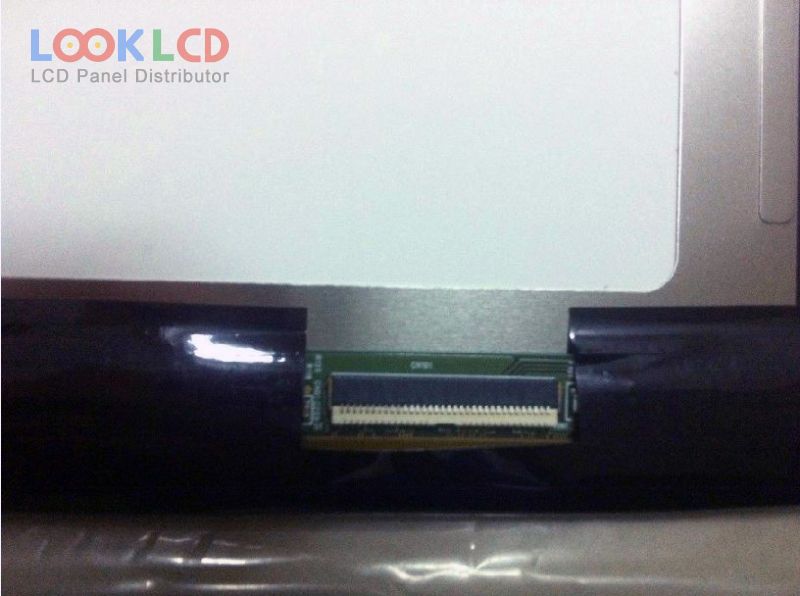

| signal interface | MIPI (4 data lanes), 34 pins |
| indgangsspænding | 3.7V (Typ.) |
| Ansøgning | PAD |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA102NA2CCN | CPT | 10.2 | 1024×600 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| CLAA150XM05 | CPT | 15.0 | 1024×768 |
| CLAA150XP01Q | CPT | 15.0 | 1024×768 |
| CLAA154WA05A | CPT | 15.4 | 1280×800 |
| CLAA154WB08A | CPT | 15.4 | 1280×800 |
| CLAA184FP01 | CPT | 18.4 | 1920×1080 |
| CLAA185WA03 | CPT | 18.5 | 1366×768 |
| CLAA185WA04 | CPT | 18.5 | 1366×768 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| HT12X21-220 | HYDIS | 12.1 | 1024×768 |
| LT121DKXBF00 | TOSHIBA | 12.1 | 1280×800 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
