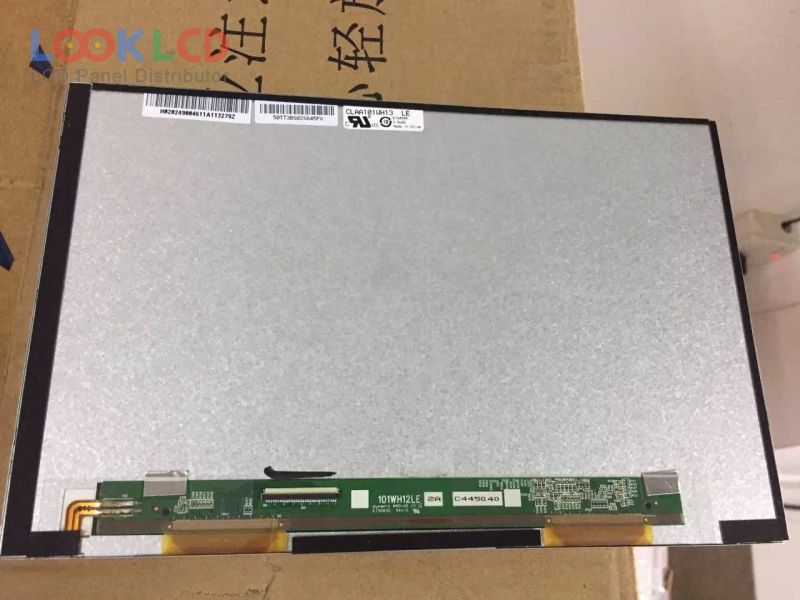

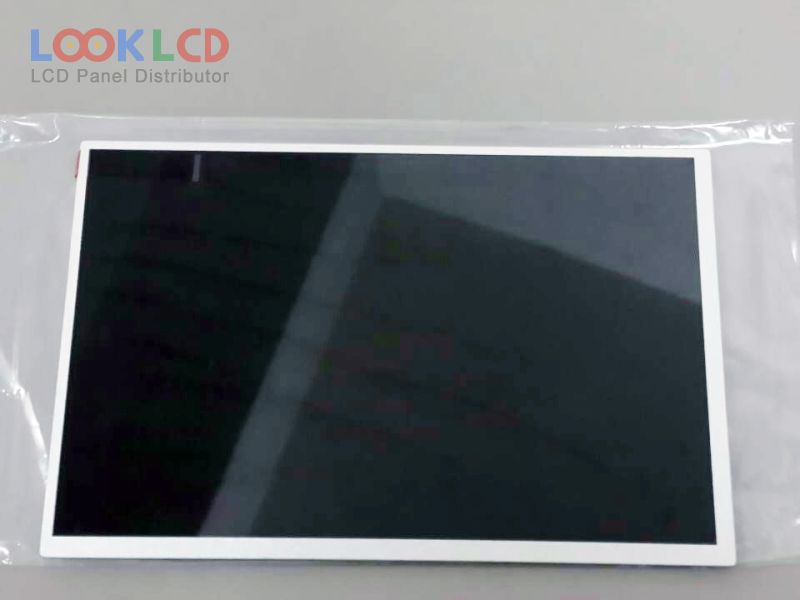

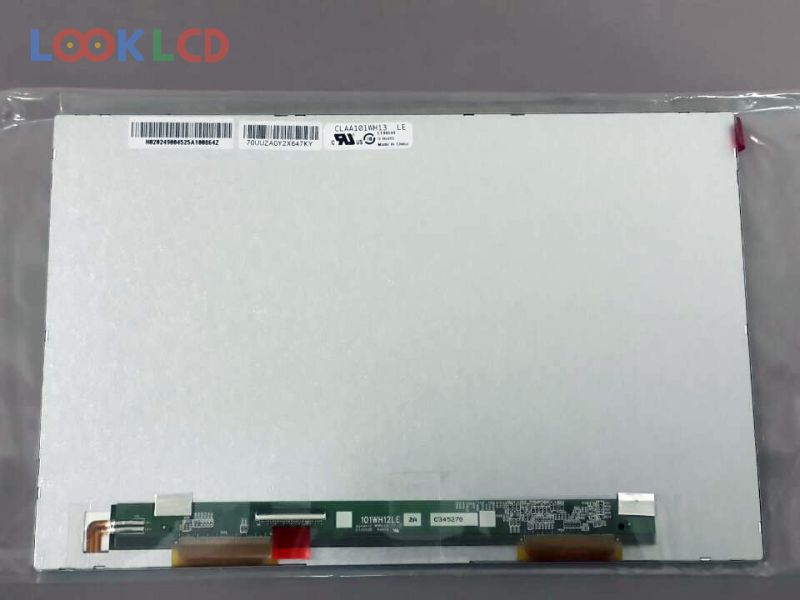

| Varenummer | CLAA101WH13LE |
| Mærke | CPT |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 600:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA101WH13LE |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 229.76×149.4×4.96 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S12PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/11.0/21.0/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | PAD |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA102NA1BCN | CPT | 10.2 | 1024×600 |
| CLAA102NA2CCN | CPT | 10.2 | 1024×600 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| CLAA104XA12BW | CPT | 10.4 | 1024×768 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| HV070WS1-105 | HYDIS | 7.0 | 1024×600 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
