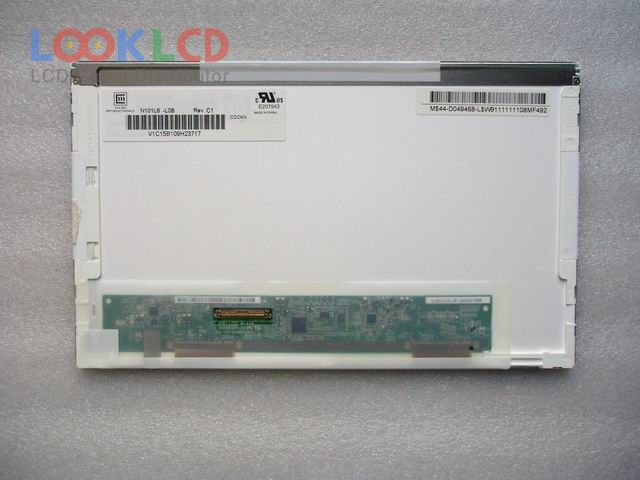

| Varenummer | N101L6-L0B |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | NOPC |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N101L6-L0B 13 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 235×143×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S2PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| N101L6-L01 | Innolux | 10.1 | 1024×600 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101L6-L0A | Innolux | 10.1 | 1024×600 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
| N101L6-L0D | Innolux | 10.1 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| B089AW01 V2 | AUO | 8.9 | 1024×600 |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| LP089WS2-TLB1 | LG Display | 8.9 | 1024×600 |
| LP101WS1-TLB1 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LP116WH4-TJA3 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-A01 | Samsung | 11.6 | 1366×768 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
