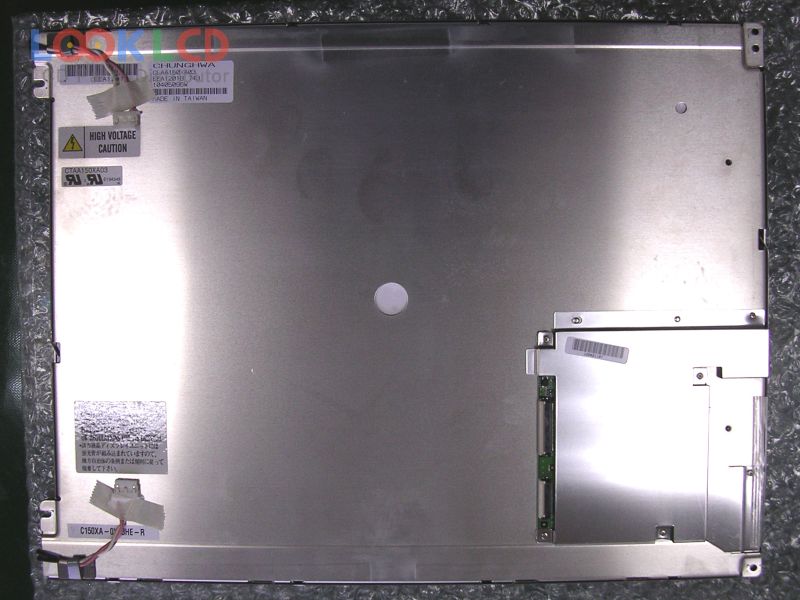

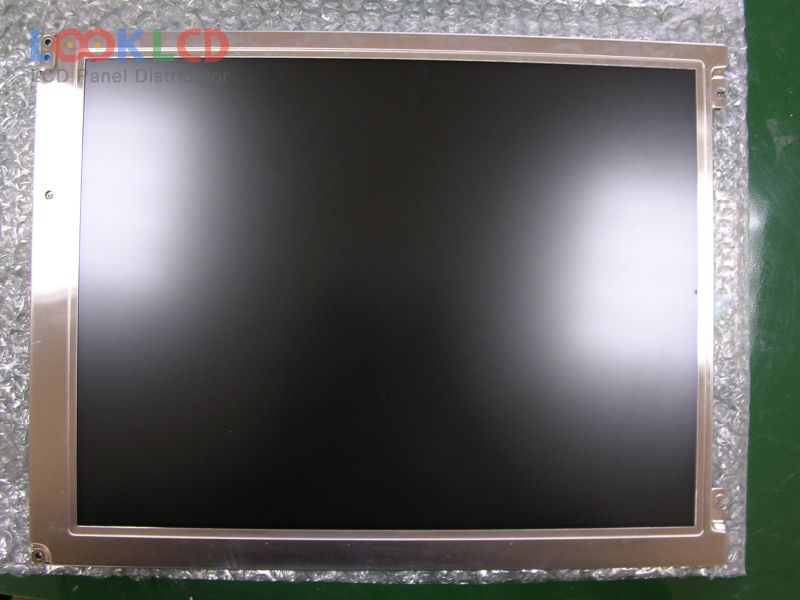

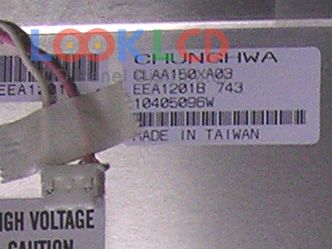

| Varenummer | CLAA150XA03 |
| Mærke | CPT |
| Størrelse | 15.0 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 350:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA150XA03 0 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 350×266.5 mm |
| overflade | Antiglare |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 13/27 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (2 ch, 8-bit), 75 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
