| Varenummer | COM104H9M11SSS |
| Mærke | Ortustech |
| Størrelse | 10.4 |
| Ansøgning | Industrial |
| Løsning | 800×600 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | Ortustech |
| model | COM104H9M11SSS |
| diagonal størrelse | 10.4 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×600 [SVGA] 96PPI |
| konfiguration | RGB Vertical Stripe |

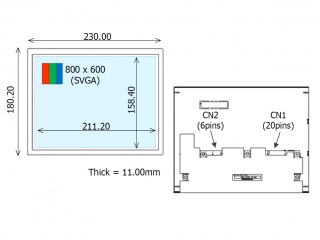

| aktivt område | 211.2(H)×158.4(V) mm |
| omrids dim. | 230(H)×180.2(V) ×11.5(D) mm |
| luminans | 650 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 40 (Max.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| driftstilstand | FFS, Normally Black, Transflective |
| støtte farve | 262K/16.7M 47% NTSC |
| lyskilde | WLED , With LED Driver |
| vægt | TBD |
| designet til | Industrial |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| LB104S01-TL02 | LG Display | 10.4 | 800×600 |
| LP104V1 | LG Display | 10.4 | 640×480 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DG11 | SHARP | 10.4 | 640×480 |
| LT104AD18F00 | TOSHIBA | 10.4 | 800×600 |
| LTD104EA5F | TOSHIBA | 10.4 | 1024×768 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
