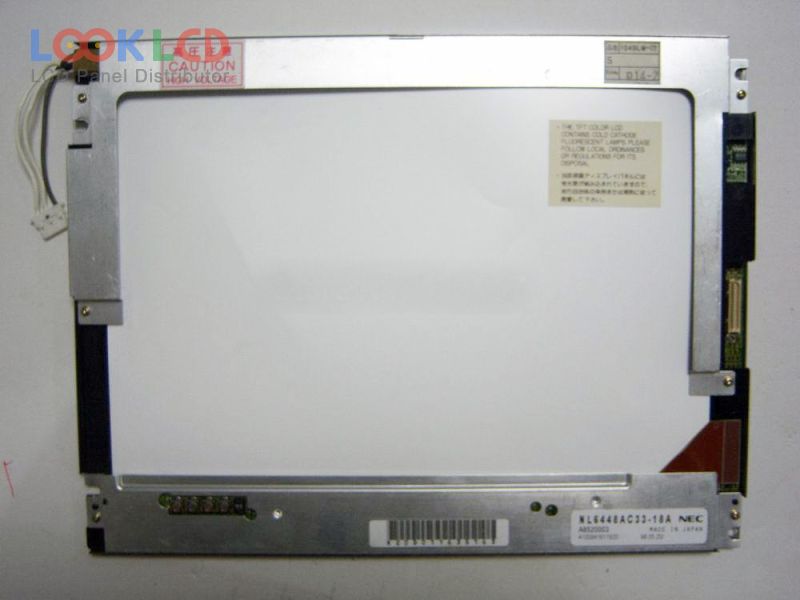

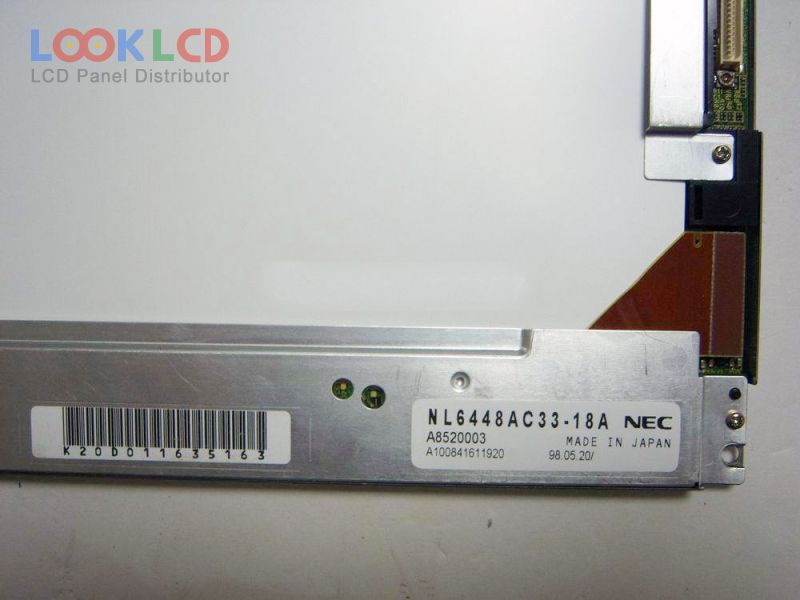

| Varenummer | NL6448AC33-18A |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448AC33-18A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×11 mm |
| overflade | Clear |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193156% |
| responstid | 40 (Max.)(Tr) |
| synsvinkel | 45/45/30/20 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLEmbedded (Inverter) |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | IA |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL6448AC30-09 | NLT | 9.4 | 640×480 |
| NL6448AC30-10 | NLT | 9.4 | 640×480 |
| NL6448AC33-05 | NLT | 10.4 | 640×480 |
| NL6448AC33-10 | NLT | 10.4 | 640×480 |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| NL6448AC33-18 | NLT | 10.4 | 640×480 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448AC33-27 | NLT | 10.4 | 640×480 |
| NL6448AC33-29 | NLT | 10.4 | 640×480 |
| AA121XN01 | Mitsubishi | 12.1 | 1024×768 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| DMF50081NF-SFW | Kyocera | 4.7 | 320×240 |
| EL320.256-FD7 HB | Lumineq | 4.8 | 320×256 |
| G151EVN01.0 | AUO | 15.1 | 1280×248 |
| LTA075A362F | TOSHIBA | 7.5 | 640×480 |
| LTM084P363 | TOSHIBA | 8.4 | 800×600 |
| NL6448BC26-15 | NLT | 8.4 | 640×480 |
| T78AAVGTF0 | Other | 5.7 | 320×240 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
