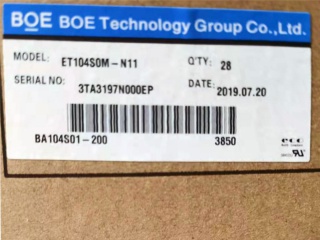

| Varenummer | ET104S0M-N11 |
| Mærke | BOE |
| Størrelse | 10.4 |
| Ansøgning | Industrial |
| Løsning | 800×600 |
| Sammensætning | a-Si TFT-LCD , LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | BOE |
| diagonal størrelse | 10.4 inch |
| pixel format | 800(RGB)×600 [SVGA] 96PPI |
| aktivt område | 211.2(H)×158.4(V) mm |
| bezel område | 215(H)×162(V) mm |
| luminans | 350 cd/m² (Typ.) |
| visningsretning | 12 o'clock |
| synsvinkel | 80/80/65/75 (Typ.)(CR≥10) |
| støtte farve | 262K/16.2M 55% NTSC |
| vægt | 288g (Typ.) |
| billedhastighed | 60Hz |
| interface type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | ET104S0M-N11 |
| type | a-Si TFT-LCD , LCM |
| konfiguration | RGB Vertical Stripe |
| omrids dim. | 236(H)×176.9(V) ×5.9(D) mm |
| behandling | Antiglare (Haze 25%) |
| kontrastforhold | 800:1 (Typ.) (TM) |
| responstid | 30 (Typ.)(Tr+Td) |
| driftstilstand | TN, Normally White, Transmissive |
| lyskilde | WLED , 30K hours , W/O Driver |
| designet til | Industrial |
| berøringspanel | Without |
