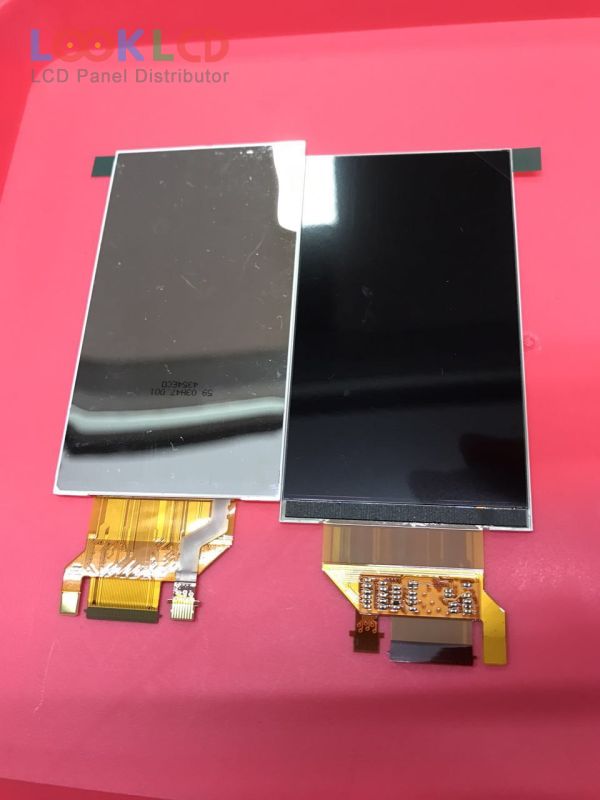

| Varenummer | H335VVN01.0 |
| Mærke | AUO |
| Størrelse | 3.4 |
| Ansøgning | MPH |
| Løsning | 480×854 |
| Sammensætning | LCM |
| Lysstyrke | 415 |
| CR | 650:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | H335VVN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.4 inch |
| løsning | 480(RGB)×854 , FWVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 41.76×74.298 mm |
| omrids | 45.16×82.12 mm |
| overflade | |
| lysstyrke | 415 cd/m² (Typ.) |
| kontrastforhold | 650:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 15/10 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1S5PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 45 pins |
| indgangsspænding | 1.85/2.85V (Typ.)(VDDI/VCI) |
| Ansøgning | MPH |
