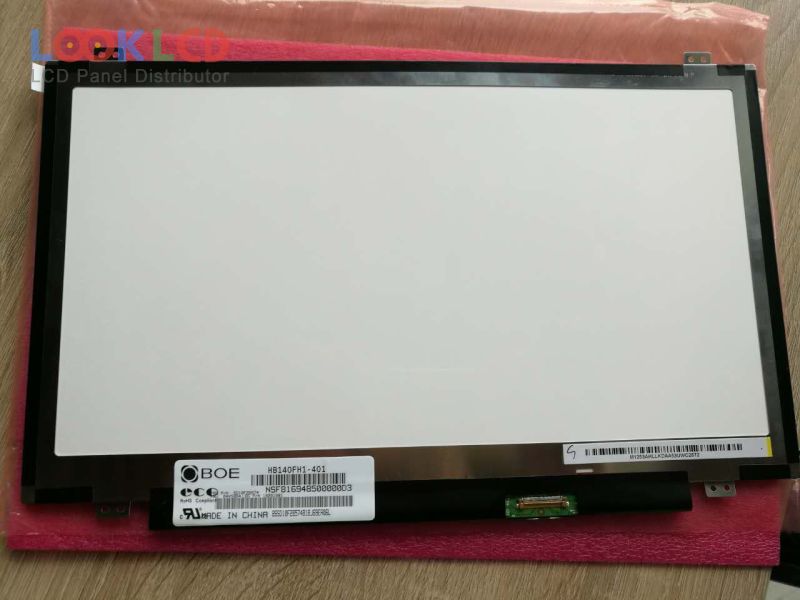

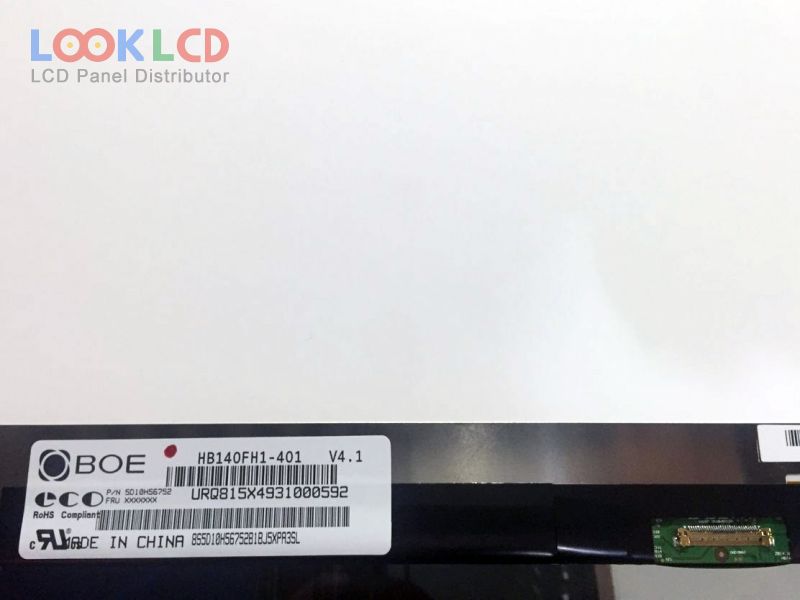

| Varenummer | HB140FH1-401 |
| Mærke | BOE |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | BOE |
| panel model | HB140FH1-401 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.14×173.89 mm |
| omrids | 320.4×205.1×3 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 12 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
