| Varenummer | LP140QH1-SPB1 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 2560×1440 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | LG Display |
| panel model | LP140QH1-SPB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 2560(RGB)×1440 , Quad-HD |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 309.5×174.1 mm |
| omrids | 320.4×204.1×2.6 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

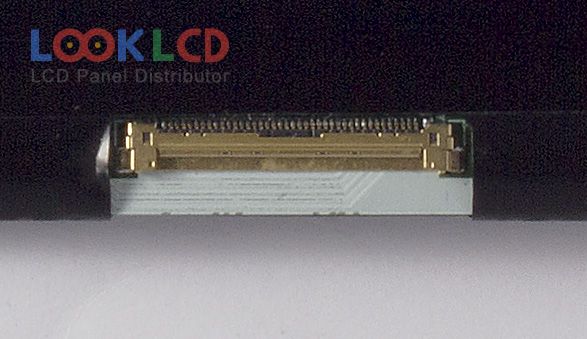

| signal interface | eDP (4 Lanes), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
