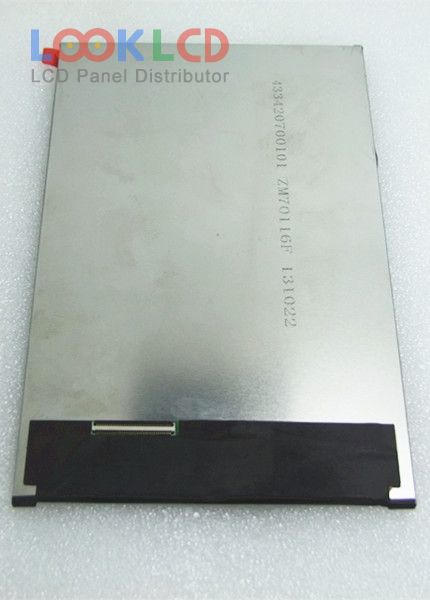

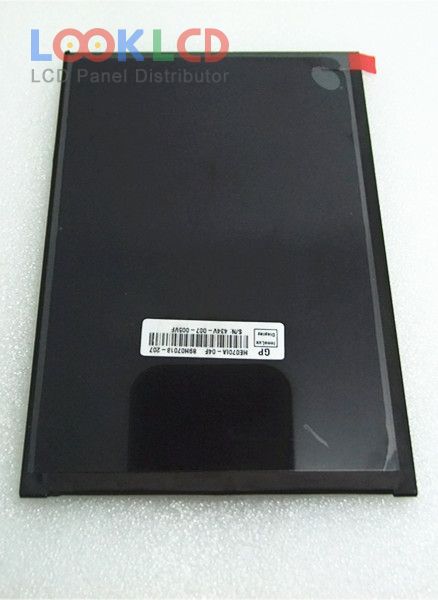

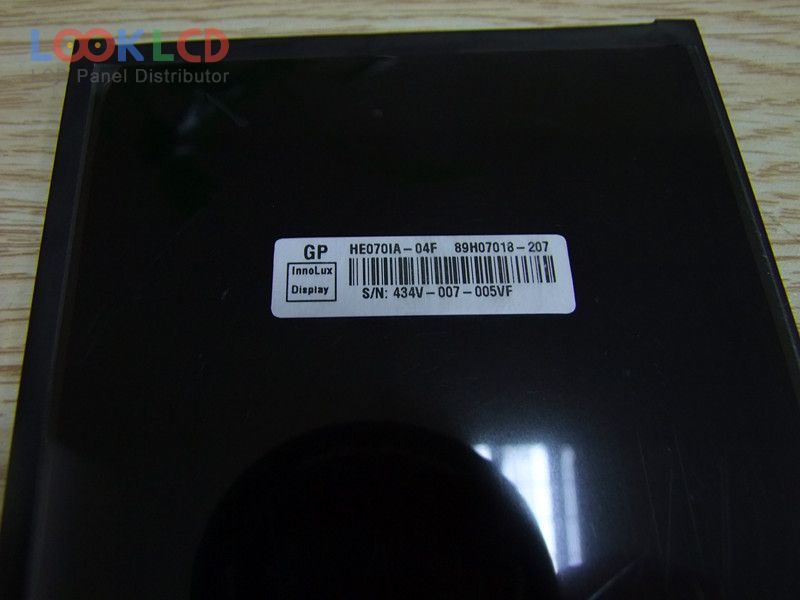

| Varenummer | HE070IA-04F |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | HE070IA-04F |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 94.2×150.72 mm |
| omrids | 101.5×159.52×0.82 mm |
| overflade | Hard coating |
| glas dybde | 0.25+0.25 mm |
| transmissivitet | 4.96% (Typ.)(with Polarizer) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 50 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | PAD |
