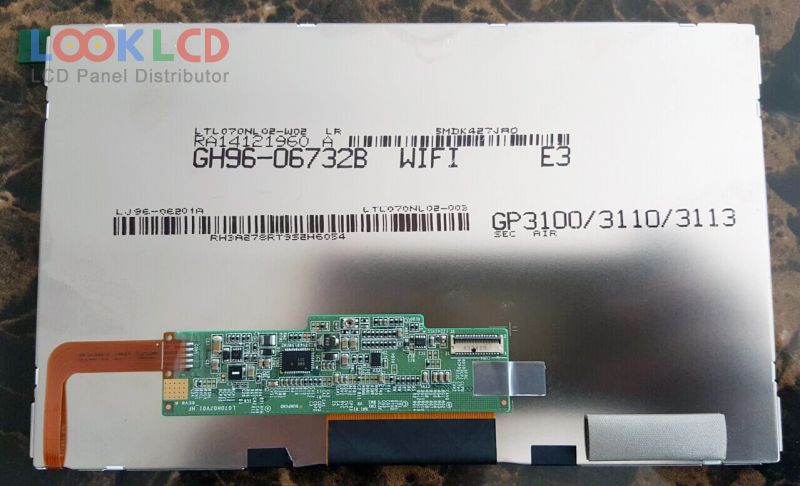

| Varenummer | LTL070NL02-W02 |
| Mærke | Samsung |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTL070NL02-W02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit) |
| Ansøgning | PAD |
| AC070MD01 | Mitsubishi | 7.0 | 800×480 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LTA070B2C0F | TOSHIBA | 7.0 | |
| LTA070B792F | TOSHIBA | 7.0 | 800×480 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| M070SW46 R0 | IVO | 7.0 | 1200×1920 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| HT12X21-220 | HYDIS | 12.1 | 1024×768 |
| HX121WX1-103 | HYDIS | 12.1 | 1280×800 |
| LP097X02-SLQA | LG Display | 9.7 | 1024×768 |
| LP116WH4-SLA1 | LG Display | 11.6 | 1366×768 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
