| Varenummer | HJ101IA-01I |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |

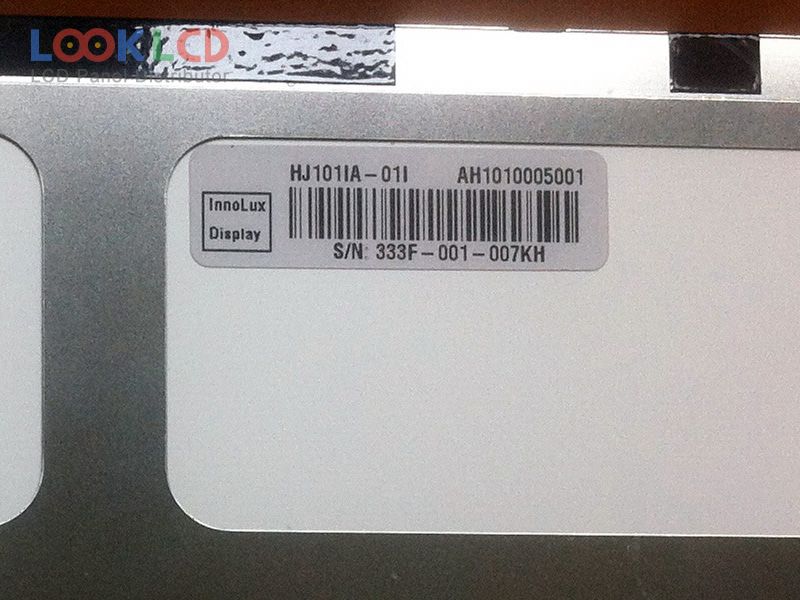

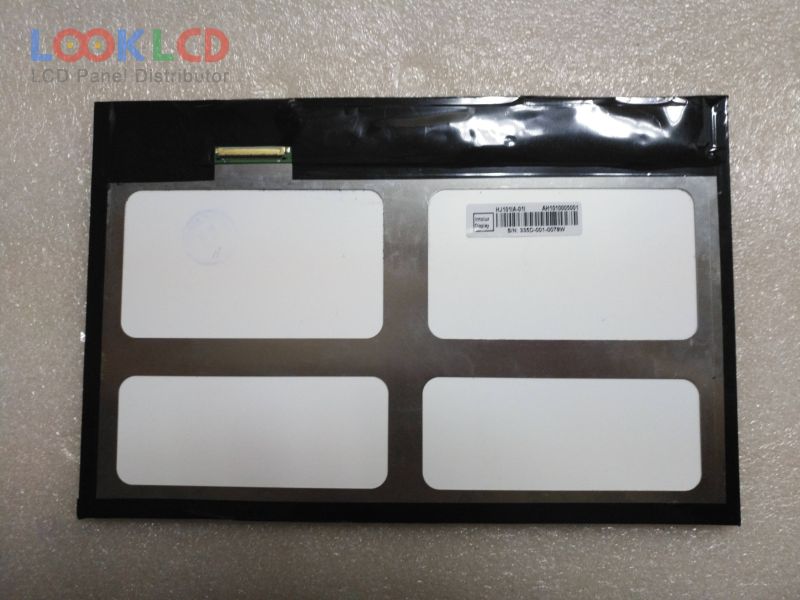

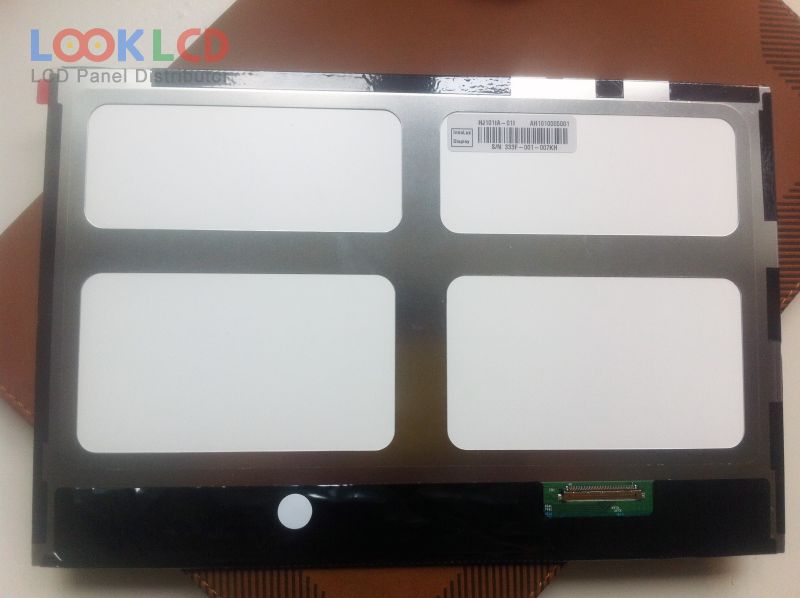

| panel model | HJ101IA-01I |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 228.6×149.2×4.59 mm |
| overflade | Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| LTN101NT07-W01 | Samsung | 10.1 | 1024×600 |
| B080XAN01.0 | AUO | 7.9 | 768×1024 |
| HV070WS1-105 | HYDIS | 7.0 | 1024×600 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTN097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| TPF0702002N | JDI | 7.0 | 1200×1920 |
