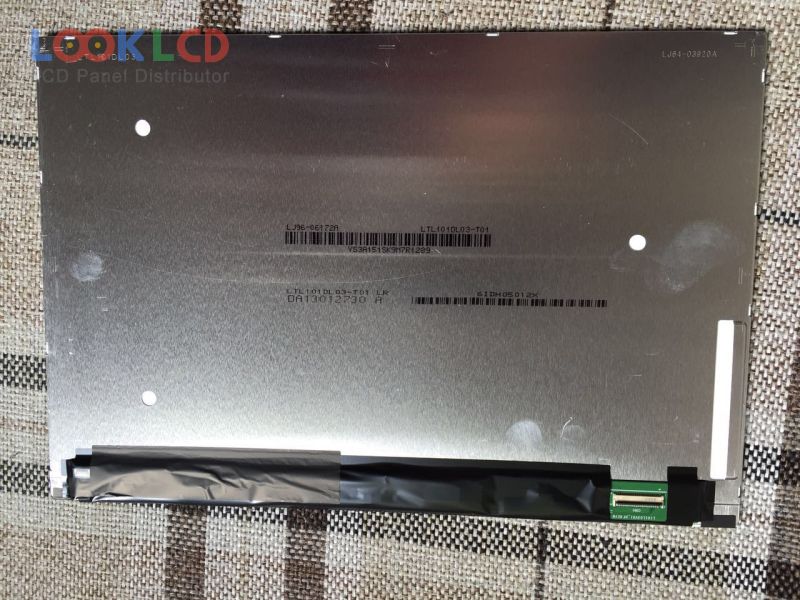

| Varenummer | LTL101DL03-T01 |
| Mærke | Samsung |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 2560×1600 |
| Sammensætning | LCM |
| Lysstyrke | 370 |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | SAMSUNG |
| panel model | LTL101DL03-T01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 2560RG(BW)×1600 , WQXGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 216.576×135.36 mm |
| omrids | 232.22×156.92×5.2 mm |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 370 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S6PWLEDEmbedded (LED Driver) |

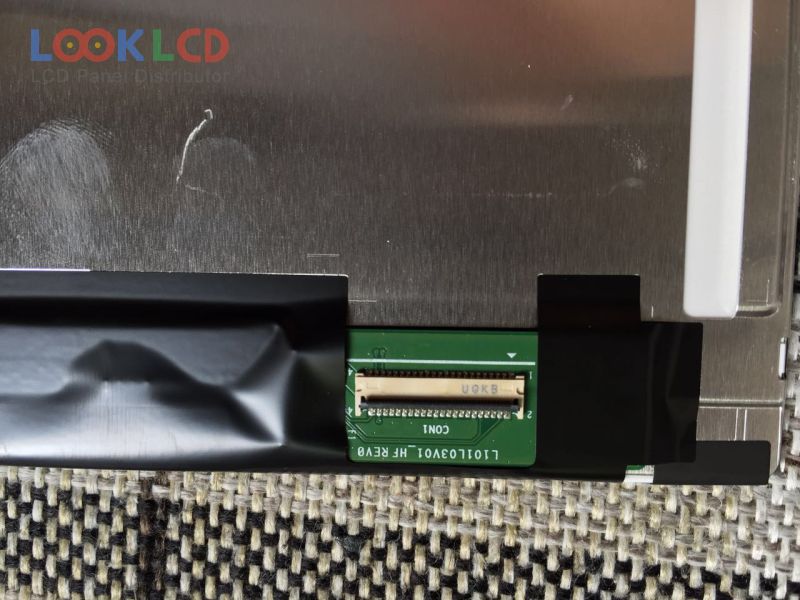

| signal interface | eDP (4 Lanes), 45 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| B101AW01 V0 HW5A | AUO | 10.1 | 1024×576 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| N101ICE-G63 | Innolux | 10.1 | 1280×800 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTL120QL01-001 | Samsung | 12.0 | 2160×1440 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
