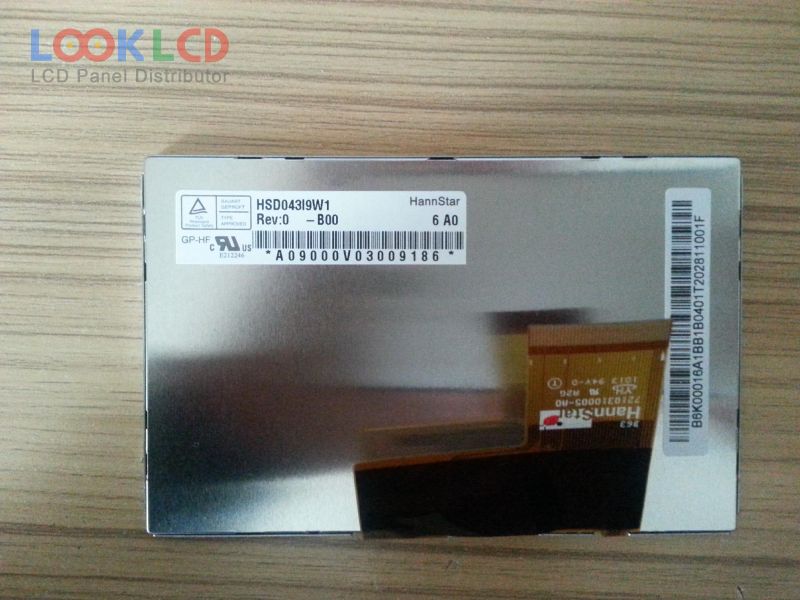

| Varenummer | HSD043I9W1-B00 |
| Mærke | HannStar |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 600:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel/Serial |
| panel mærke | HannStar |
| panel model | HSD043I9W1-B00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLED |
| signal interface | Digital RGB (8/24-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
| 43WQW4H | SII | 4.3 | 480×272 |
| 43WVF1G | SII | 4.3 | 800×480 |
| A040FL01 V2 | AUO | 4.0 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| PD035VX2 | E Ink | 3.5 | 640×480 |
