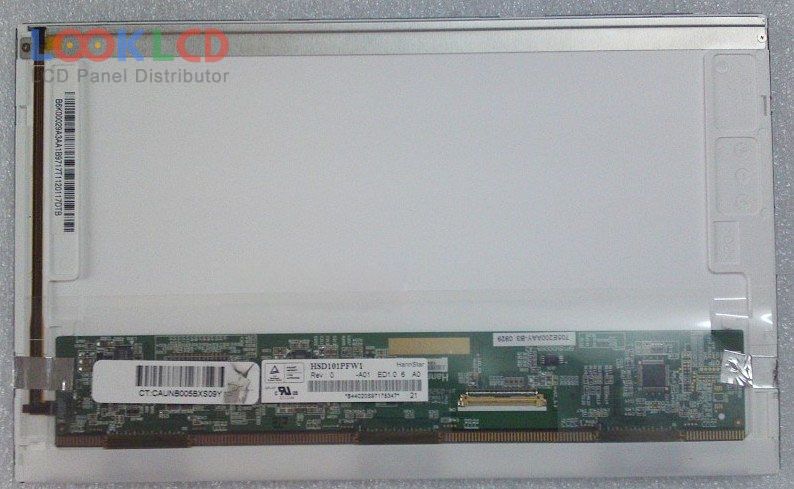

| Varenummer | HSD101PFW1-A01 |
| Mærke | HannStar |
| Størrelse | 10.1 |
| Ansøgning | DPF |
| Løsning | 1024×576 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD101PFW1-A01 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×576 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 235×143×5.2 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 2/6 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 27 pcsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DPF |
