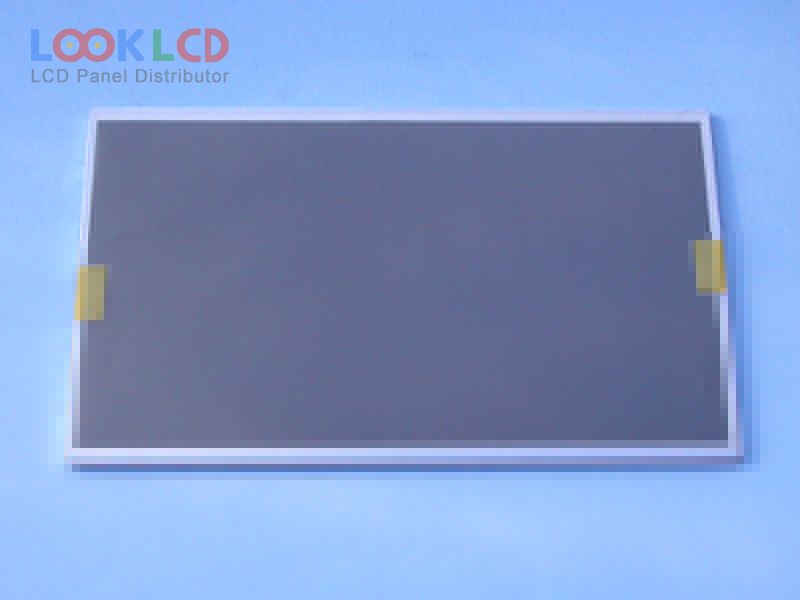

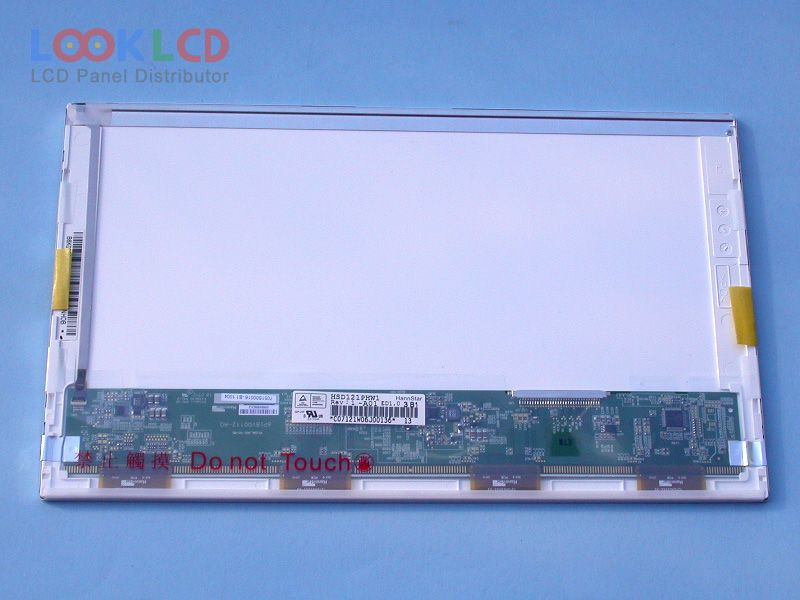

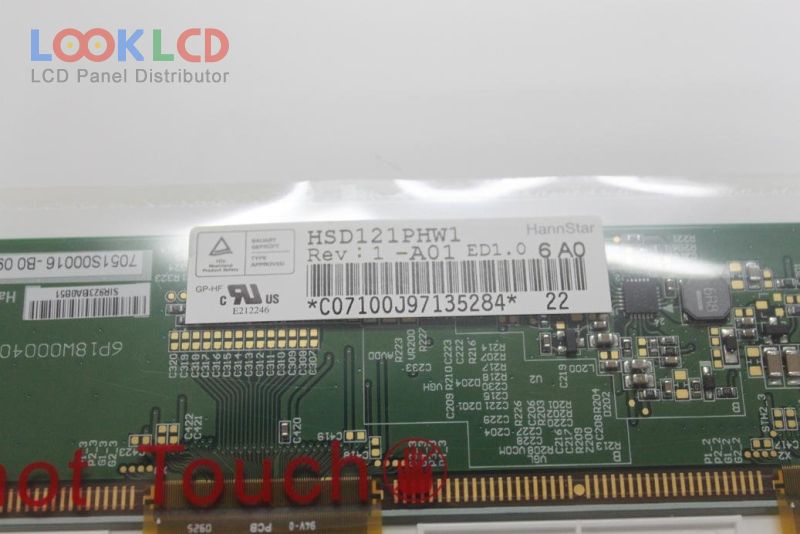

| Varenummer | HSD121PHW1-A01 |
| Mærke | HannStar |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD121PHW1-A01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 268.01×150.68 mm |
| omrids | 279×167.2×5.1 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 3/9 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| AA121XH03 | Mitsubishi | 12.1 | 1024×768 |
| HSD121PHW1-A01 | HannStar | 12.1 | 1366×768 |
| HSD121PHW1-A03 | HannStar | 12.1 | 1366×768 |
| HSD121PHW2-A00 | HannStar | 12.1 | 1366×768 |
| HSD121PS11-A | HannStar | 12.1 | 800×600 |
| HT121WX2-211 | HYDIS | 12.1 | 1280×800 |
| LT121DEVCN00 | TOSHIBA | 12.1 | 1280×800 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| TM121SV-02L01 | SANYO | 12.1 | 800×600 |
| B133XW03 V4 | AUO | 13.3 | 1366×768 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| B141XN03 V0 | AUO | 14.1 | 1024×768 |
| LP133WH2-TLB2 | LG Display | 13.3 | 1366×768 |
| LP141WX3-TLN1 | LG Display | 14.1 | 1280×800 |
| LTN133AT25-T01 | Samsung | 13.3 | 1366×768 |
| LTN141X8-L00 | Samsung | 14.1 | 1024×768 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| M116NWR1 R3 | IVO | 11.6 | 1366×768 |
| TM150XG-02L11 | SANYO | 15.0 | 1024×768 |
