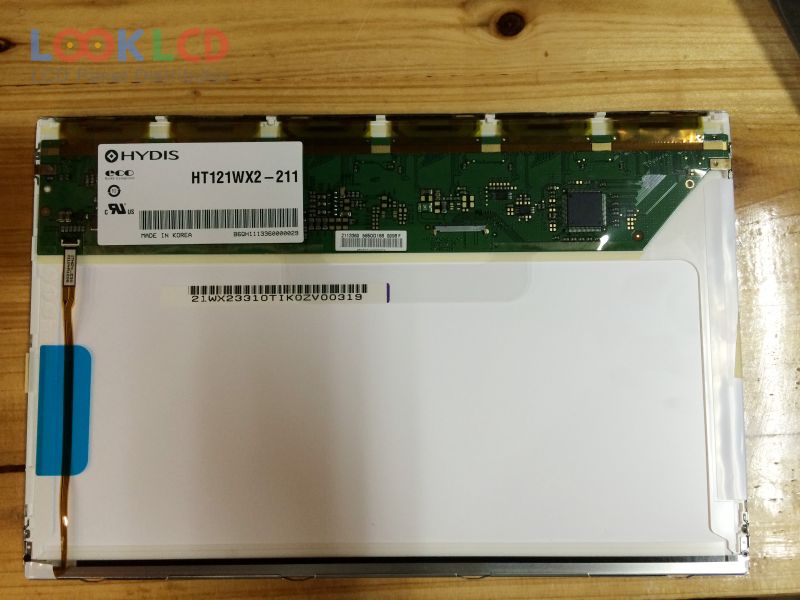

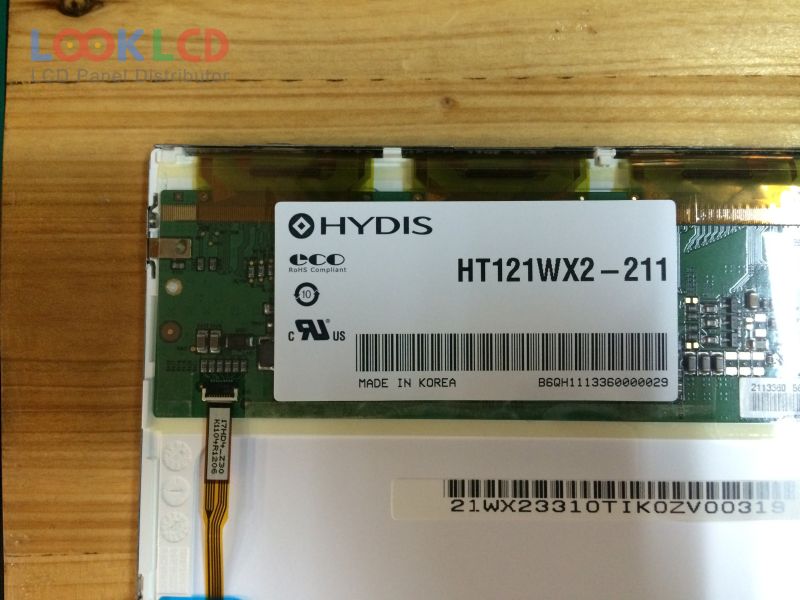

| Varenummer | HT121WX2-211 |
| Mærke | HYDIS |
| Størrelse | 12.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HYDIS |
| panel model | HT121WX2-211 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 276.8×180 mm |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit) |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
