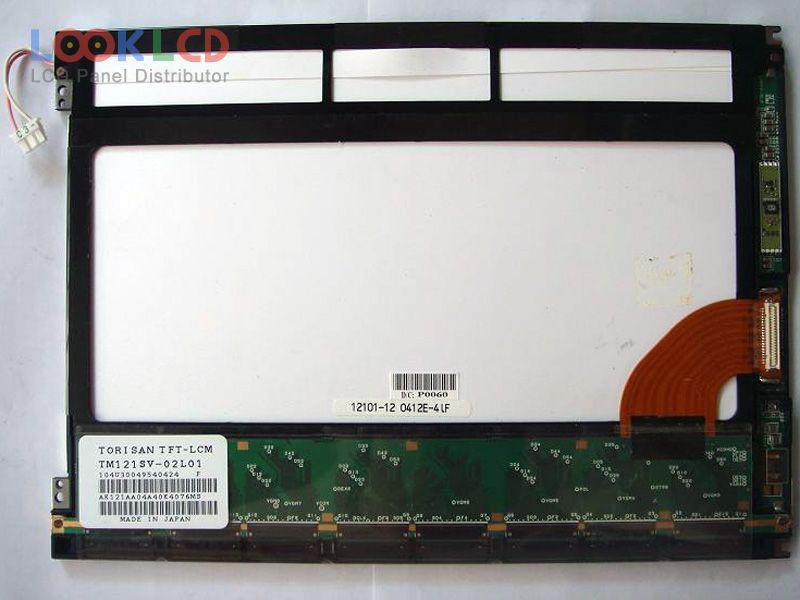

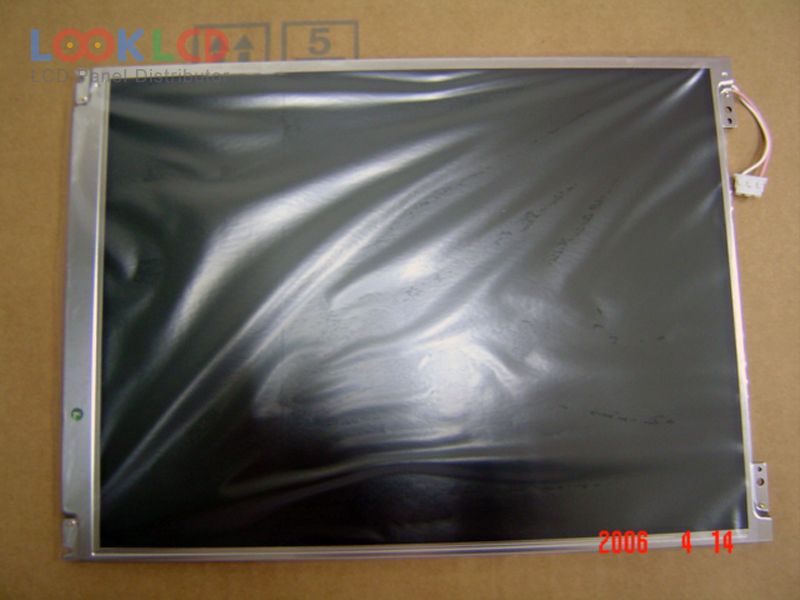

| Varenummer | TM121SV-02L01 |
| Mærke | SANYO |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | TORISAN |
| panel model | TM121SV-02L01 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 275×199×6.9 mm |
| overflade | Antiglare |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 30/20 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 41 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
