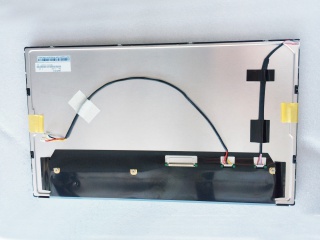

| Varenummer | HSD156JUW1-A00 |
| Mærke | HannStar |
| Størrelse | 15.6 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 1920×1080 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | 8S6P |
| Interface | LVDS |
| fabrikant | HannStar |
| modelnavn | HSD156JUW1-A00 |
| skærmstørrelse | 15.6 inch |
| skærmtype | LCM , a-Si TFT-LCD |
| pixel antal | 1920(RGB)×1080 (FHD) 141PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 344.16 × 193.59 (H×V) |
| omrids (mm) | 363.8 × 215.9 × 12 (H×V×D) |
| rammeareal (mm) | 346 × 195.4 (H×V) |
| behandling | Antiglare |
| luminans | 850 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Typ.) (TM) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| respons | 18/17 (Typ.)(Tr/Td) ms |
| god udsigt kl | Symmetry |
| arbejdstilstand | IPS Pro, Normally Black, Transmissive |
| farvedybde | 16.7M 70% NTSC |
| baggrundsbelysning | 8S6P WLED , 50K hours , With LED Driver |
| masse | TBD |
| anvendes til | Industrial Outdoor High Brightness Automotive Display |
| opdateringshastighed | 60Hz |
| berøringsskærm | Without |
| signaltype | LVDS (2 ch, 8-bit) , 30 pins Connector |
| spændingsforsyning | 5.0V (Typ.) |
| max. vurderinger | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
