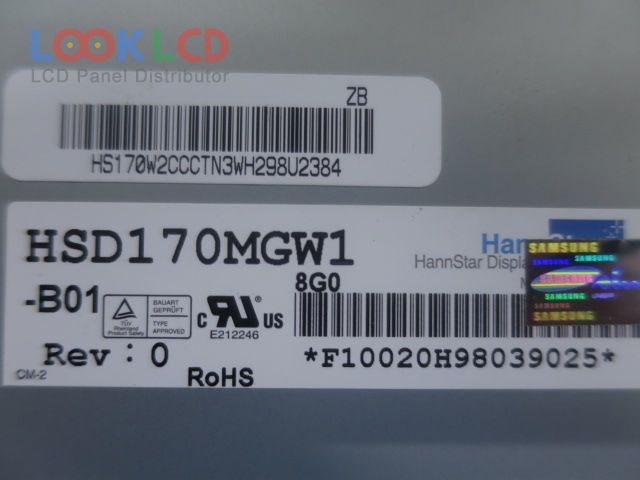

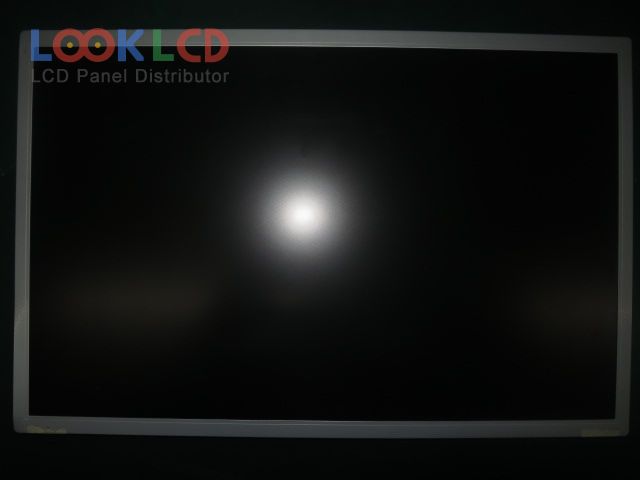

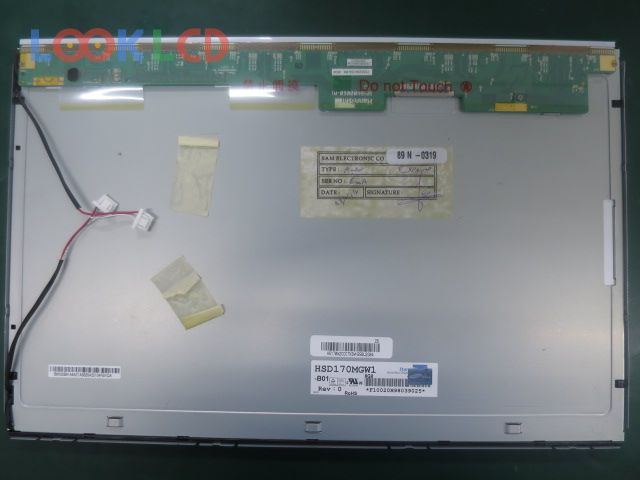

| Varenummer | HSD170MGW1-B01 |
| Mærke | HannStar |
| Størrelse | 17.0 |
| Ansøgning | DMPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 600:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD170MGW1-B01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 389.2×254.5×11.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193163% |
| responstid | 3/5 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/65/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
