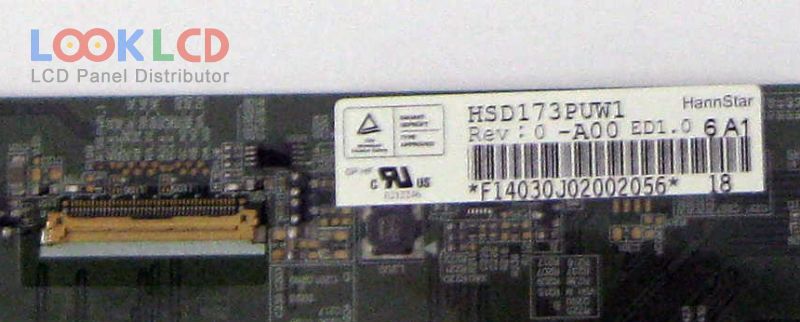

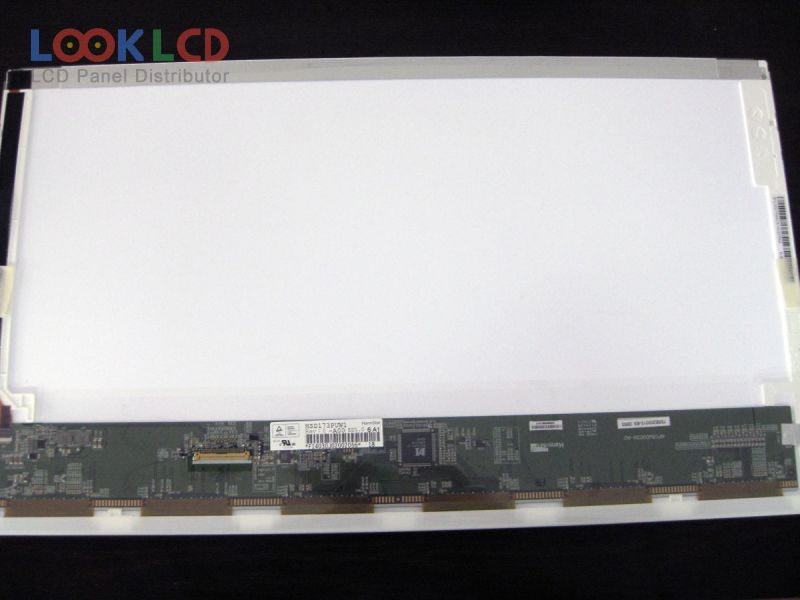

| Varenummer | HSD173PUW1-A00 |
| Mærke | HannStar |
| Størrelse | 17.3 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD173PUW1-A00 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.3 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 381.888×214.812 mm |
| omrids | 398.1×232.8×5.8 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 2.4/5.6 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
