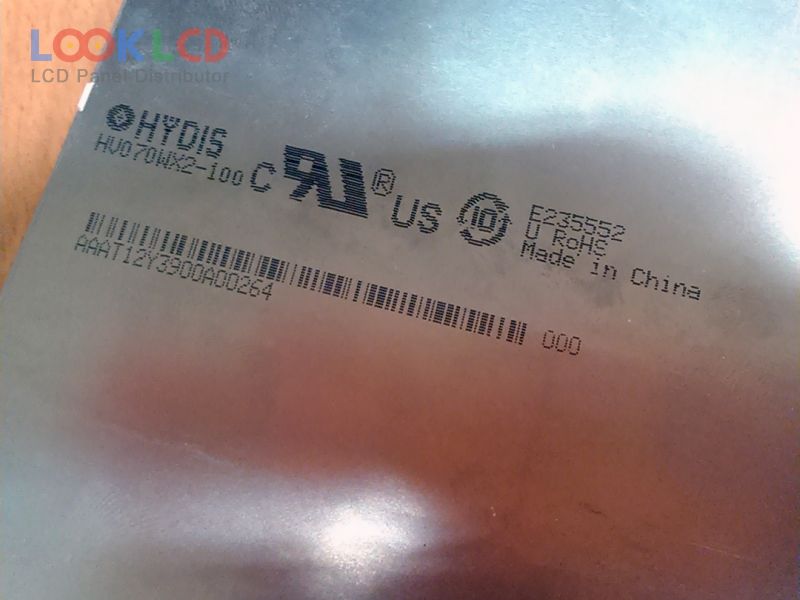

| Varenummer | HV070WX2-100 |
| Mærke | HYDIS |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HYDIS |
| panel model | HV070WX2-100 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 94.2×150.72 mm |
| omrids | 104.32×161.67×3.75 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S5PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
