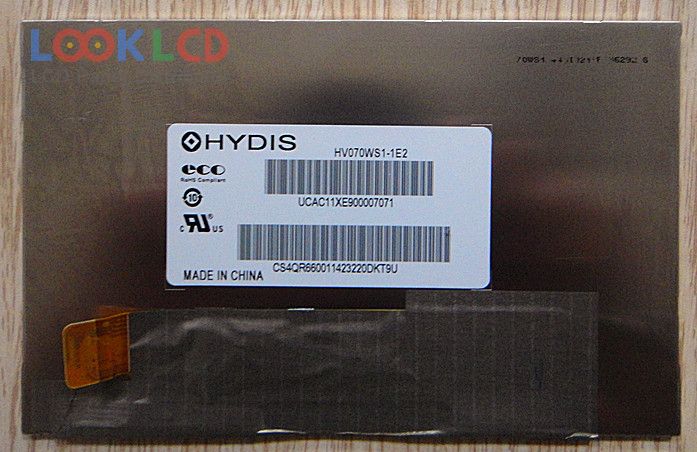

| Varenummer | HV070WS1-1E2 |
| Mærke | HYDIS |
| Størrelse | 7.0 |
| Ansøgning | |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | |
| panel mærke | HYDIS |
| panel model | HV070WS1-1E2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 153.6×90 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC) |
| responstid | |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLED |
