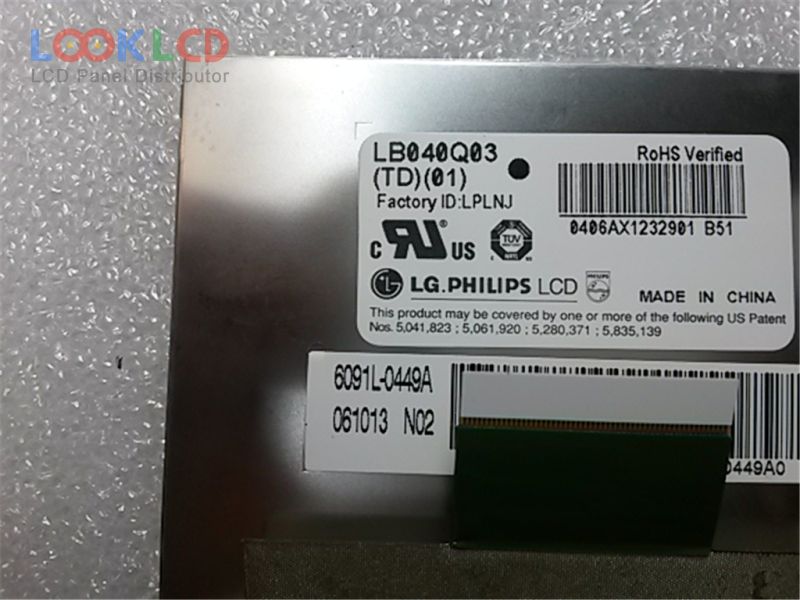

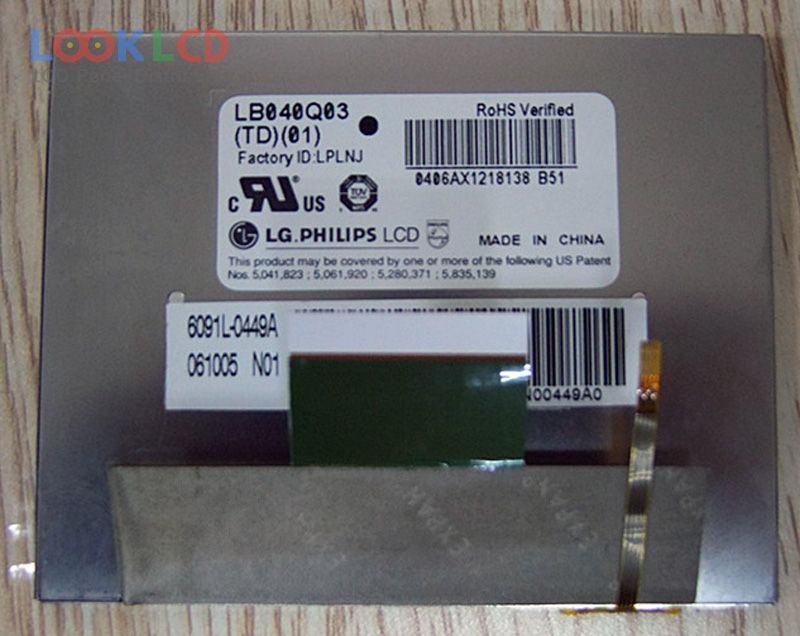

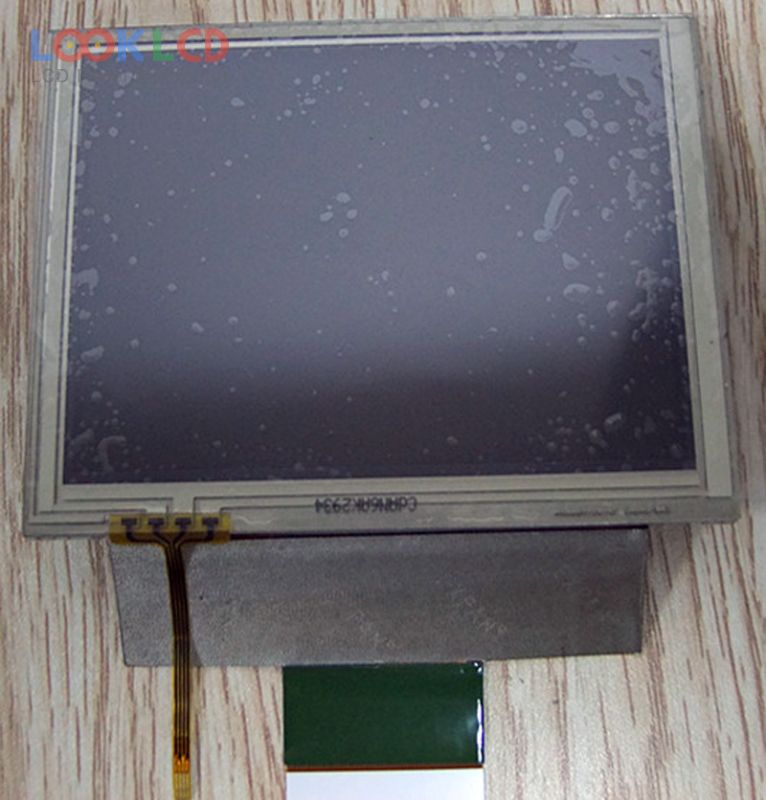

| Varenummer | LB040Q03-TD01 |
| Mærke | LG Display |
| Størrelse | 4.0 |
| Ansøgning | MP4 |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | LG.Philips LCD |
| panel model | LB040Q03-TD01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 81.6×61.2 mm |
| omrids | 96×75.6 mm |
| overflade | Antiglare |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| indgangsspænding | 3.3V/4.8V (Typ.)(VDD/AVDD) |
| Ansøgning | MP4 |
