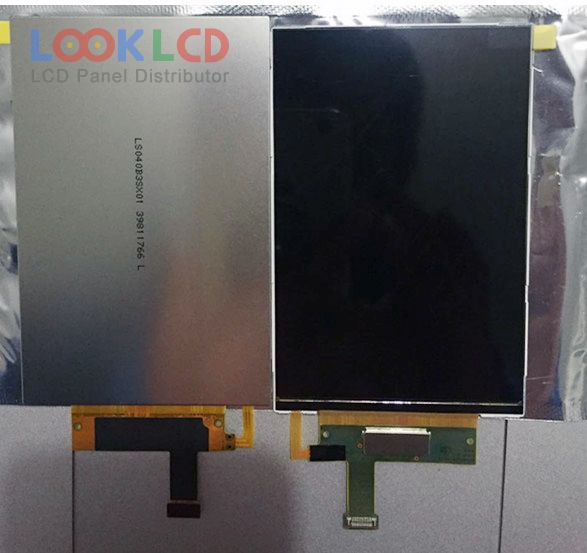

| Varenummer | LS040B3SX01 |
| Mærke | SHARP |
| Størrelse | 4.0 |
| Ansøgning | MPH |
| Løsning | 640×960 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | SHARP |
| panel model | LS040B3SX01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 4.0 inch |
| løsning | 640(RGB)×960 , DVGA |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 55.68×83.52 mm |
| omrids | 59.8×91.85×1.8 mm |
| overflade | Clear |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 11/24 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | MIPI (2 data lanes), 24 pins |
| indgangsspænding | 1.8/5.5V (Typ./Max.) |
| Ansøgning | MPH |
| AMDM001 | Samsung | 2.6 | 240×400 |
| H497TLB01 | AUO | 5.0 | 720×1280 |
| HSD015F4N2-B | HannStar | 1.5 | 128×128 |
| HSD060FMW1-C00 | HannStar | 6.0 | 540×960 |
| LH400WV3-SD04 | LG Display | 4.0 | 480×800 |
| LMS245DC08 | Samsung | 2.4 | 480×360 |
| LMS283GF11 | Samsung | 2.8 | 240×320 |
| LT041MDM6000 | TOSHIBA | 4.1 | 480×800 |
| PJ050IA-14A | Innolux | 5.0 | 720×1280 |
| TX10D121VM0AAA | JDI | 4.0 | 480×800 |
