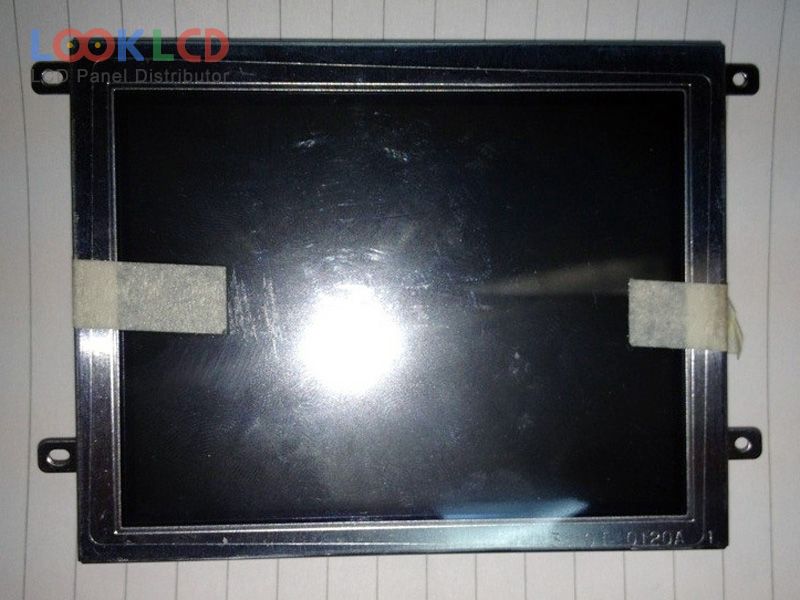

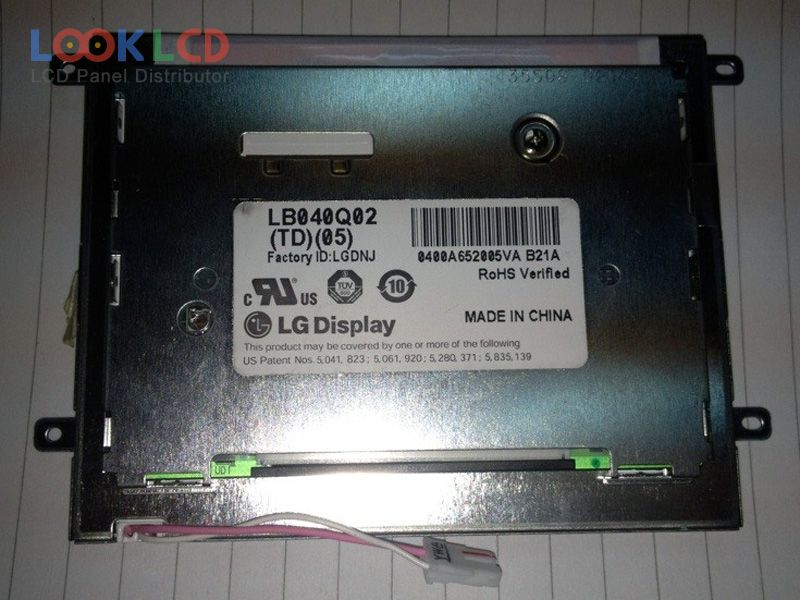

| Varenummer | LB040Q02-TD05 |
| Mærke | LG Display |
| Størrelse | 4.0 |
| Ansøgning | CNS |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | LG.Philips LCD |
| panel model | LB040Q02-TD05 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 81.6×61.2 mm |
| omrids | 98.4×78 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/30 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | CMOS/TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | CNS |
