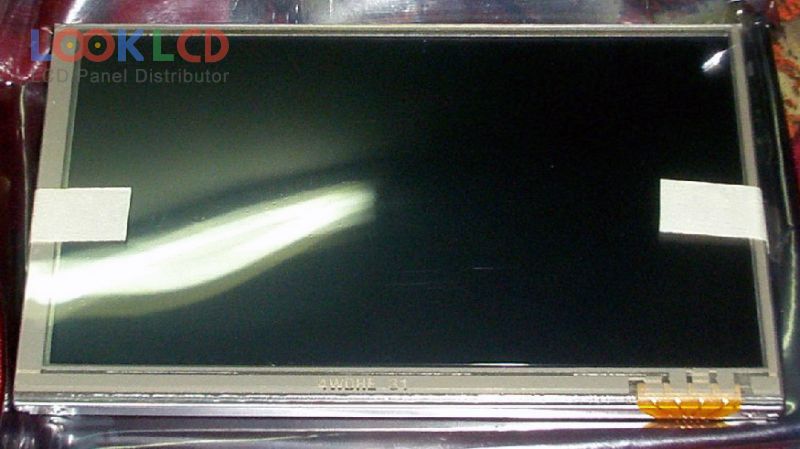

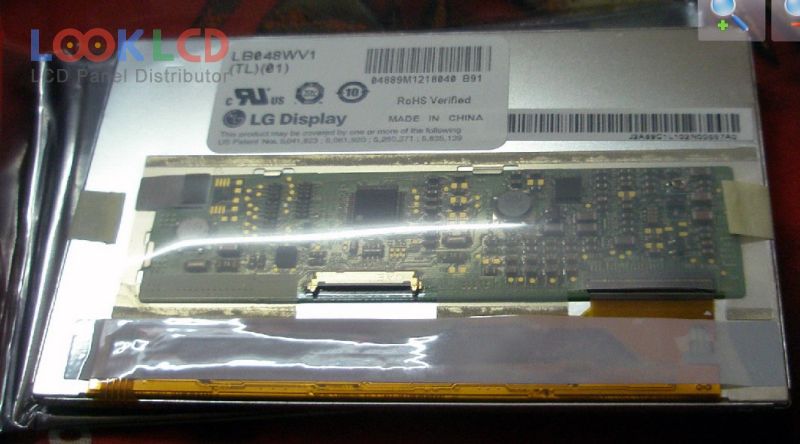

| Varenummer | LB048WV1-TL01 |
| Mærke | LG Display |
| Størrelse | 4.8 |
| Ansøgning | UMPC |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 280 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LB048WV1-TL01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.8 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 103.8×62.28 mm |
| omrids | 114.65×74.7×5.88 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 280 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | UMPC |
| CLAA048LA0BCW | CPT | 4.8 | 800×480 |
| COM48T4Mxxxxx | ORTUSTECH | 4.8 | 1920×1080 |
| EL240.128.45 INT | PLANAR | 4.8 | 240×128 |
| EL320.256-F6 | Lumineq | 4.8 | 320×256 |
| EL320.256-FD6 | Lumineq | 4.8 | 320×256 |
| LB048Q01-TD01 | LG Display | 4.8 | 240×257 |
| LB048WV1-TL01 | LG Display | 4.8 | 800×480 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LTE480WV-F01 | Samsung | 4.8 | 800×480 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| HV056WX2-100 | HYDIS | 5.6 | 1280×800 |
| LD070WS2-SL01 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL05 | LG Display | 7.0 | 1024×600 |
| LQ055W1GC01 | SHARP | 5.5 | 1024×600 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056ET2F | TOSHIBA | 5.6 | 1024×600 |
| N070ICG-LD4 | Innolux | 7.0 | 1280×800 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
