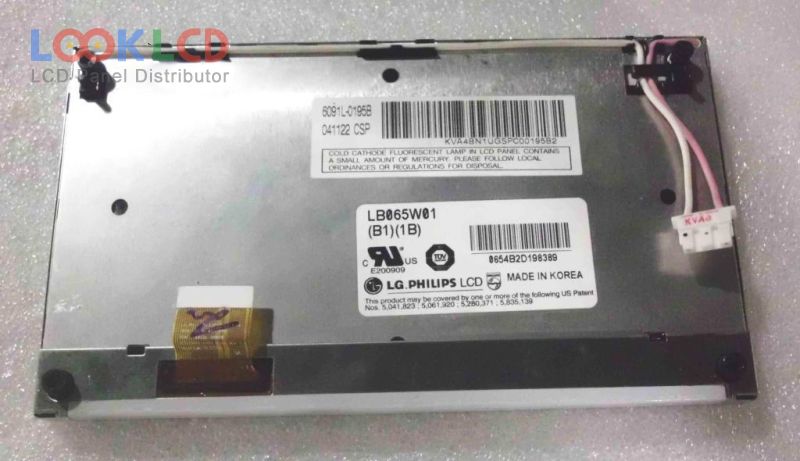

| Varenummer | LB065W01-B11B |
| Mærke | LG Display |
| Størrelse | 6.5 |
| Ansøgning | VDP |
| Løsning | 400×234 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 400:1 |
| Farver | Full color |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | LG.Philips LCD |
| panel model | LB065W01-B11B |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.5 inch |
| løsning | 400(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 143.4×79.326 mm |
| omrids | 157.2×89.7 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | Full color |
| responstid | 10/30 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 32 pins |
| indgangsspænding | 5/13/5/-10/-10.9/-16V (Typ.)(VSH/VGH/VGLAC/VGLDC/VCC/VSS) |
| Ansøgning | VDP |
| AT065TN14 | Innolux | 6.5 | 800×480 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| KHB065HV1BD-M10 | Kyocera | 6.5 | 640×240 |
| LB065W01-B11B | LG Display | 6.5 | 400×234 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LM065HB1T01 | SHARP | 6.5 | 640×240 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| TM065QDHG03 | Tianma | 6.5 | 640×480 |
| A056DN01 | AUO | 5.6 | 320×234 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| AT050TN23 V.1 | Innolux | 5.0 | 640×480 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| CLAA070WA03 | CPT | 7.0 | 480×234 |
| LQ6AN101 | SHARP | 5.6 | 320×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
