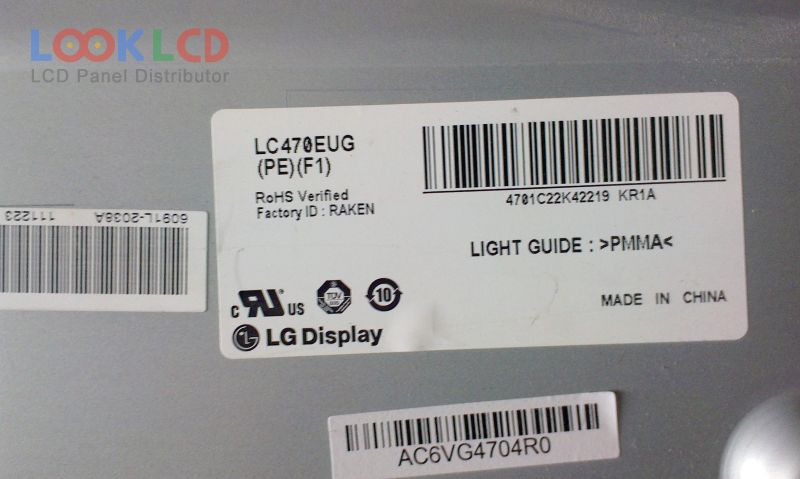

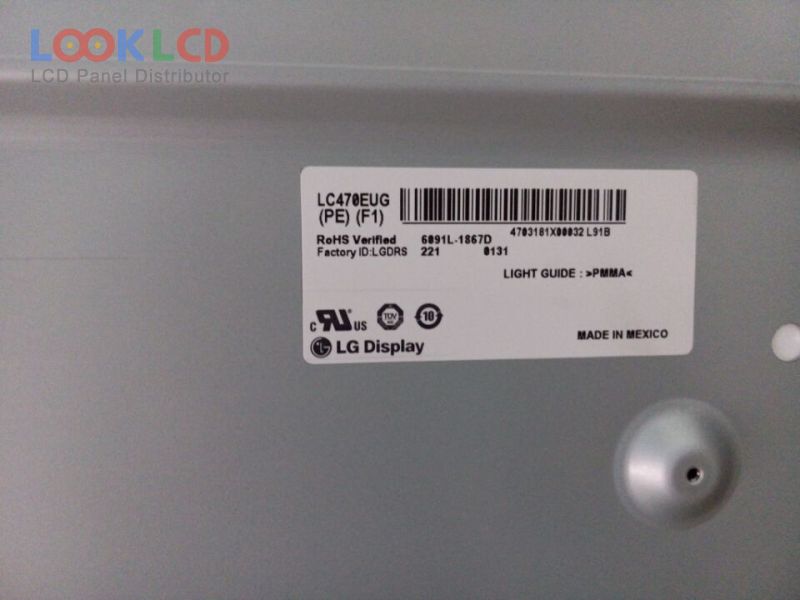

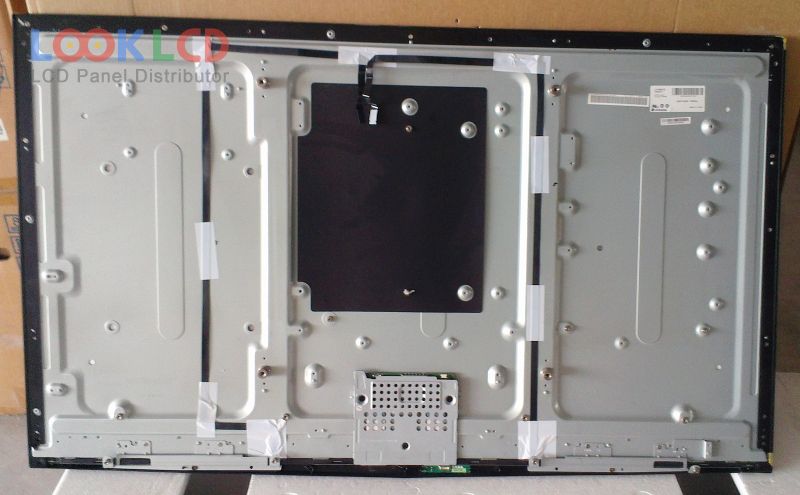

| Varenummer | LC470EUG-PEF1 |
| Mærke | LG Display |
| Størrelse | 47 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 360 |
| CR | 1400:1 |
| Farver | 1.06B |
| Baggrundsbelysning | WLED |
| Interface | EPI |
| panel mærke | LG Display |
| panel model | LC470EUG-PEF1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 47 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-IPS, Normally Black, Transmissive |
| aktivt område | 1039.68×584.82 mm |
| omrids | 1059.5×616.2 mm |
| overflade | Antiglare (Haze 1%), Hard coating (2H) |
| lysstyrke | 360 cd/m² (Typ.) |
| kontrastforhold | 1400:1 (Typ.) |
| vise farver | 1.06B (8-bit + Dithering), CIE193168% |
| responstid | 8/10 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | WLEDWithout Driver |
| signal interface | EPI, 100 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
