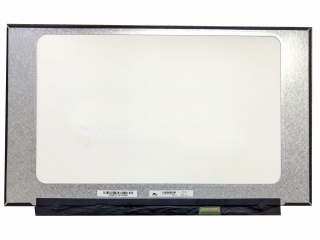

| Varenummer | LM156LF9L02 |
| Mærke | PANDA |
| Størrelse | 15.6 |
| Ansøgning | Laptop |
| Løsning | 1920×1080 |
| Sammensætning | Oxide TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| mærke | PANDA |
| model | LM156LF9L02 |
| diagonal størrelse | 15.6 inch |
| type | Oxide TFT-LCD, LCM |
| pixel format | 1920(RGB)×1080 [FHD] 141PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 344.16(H)×193.59(V) mm |
| omrids dim. | 350.66(H)×216.25(V) ×2.6(D) mm |
| bezel område | - |
| behandling | Hard coating (3H) |
| luminans | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 25 (Typ.)(Tr+Tf) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10) |
| driftstilstand | FFS, Normally Black, Transmissive |
| støtte farve | 262K |
| lyskilde | WLED , 15K hours , With LED Driver |
| form stil | Slim (PCBA Flat, T≤3.2mm) |
| designet til | Laptop |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | eDP (2 Lanes) , 30 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| CLAA156WA12 | CPT | 15.6 | 1366×768 |
| G156XW01 V0 | AUO | 15.6 | 1366×768 |
| G156XW01 V1 | AUO | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
