| Varenummer | LM230WF5-TRA1 |
| Mærke | LG Display |
| Størrelse | 23.0 |
| Ansøgning | DMPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Mini LVDS |
| panel mærke | RAKEN |
| panel model | LM230WF5-TRA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 23.0 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 509.184×286.416 mm |
| omrids | 533.2×312×8.85 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193168% |
| responstid | 1.3/3.7 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 stringsWLEDWithout Driver |

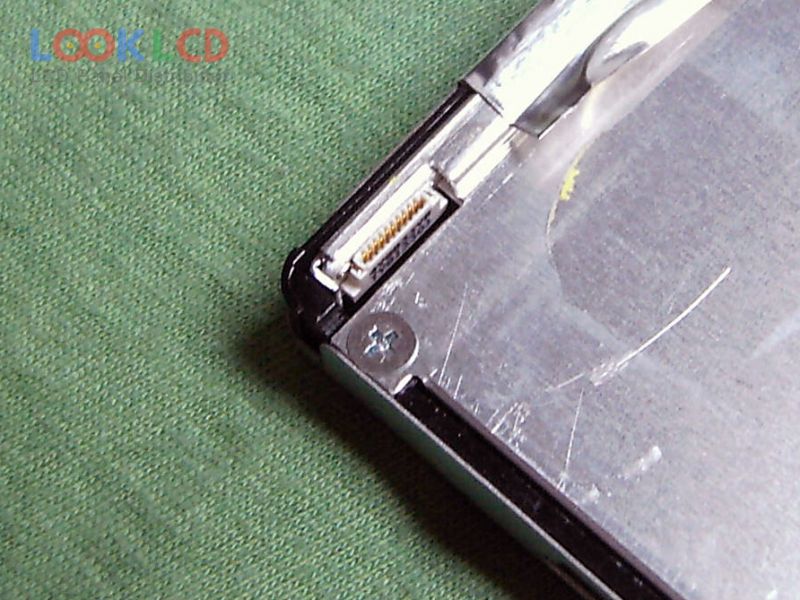

| signal interface | Mini LVDS, 50 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| LM230WF2-SLA2 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLB2 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLL1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF4-TLA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLB1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TRA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF8-TLA2 | LG Display | 23.0 | 1920×1080 |
| LM230WU3-STC3 | LG Display | 23.0 | 1920×1200 |
| HM215WU3-101 | BOE | 21.5 | 1920×1080 |
| ITSX98E | IDTech | 18.1 | 1280×1024 |
| LM150X08-TLB1 | LG Display | 15.0 | 1024×768 |
| LM190E08-TLL1 | LG Display | 19.0 | 1280×1024 |
| LM270WF5-SLA1 | LG Display | 27.0 | 1920×1080 |
| LTM230HT02 | Samsung | 23.0 | 1920×1080 |
| M150XN07 V1 | AUO | 15.0 | 1024×768 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M170ETN01.1 | AUO | 17.0 | 1280×1024 |
| TM190MDS01 | Tianma | 19.0 | 1440×900 |
