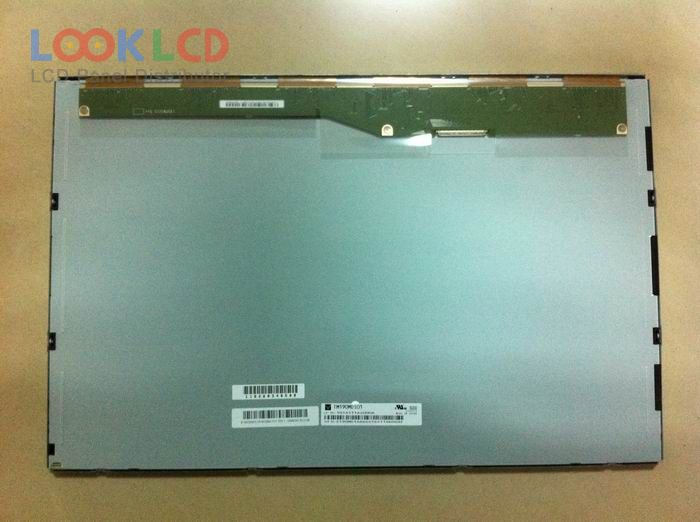

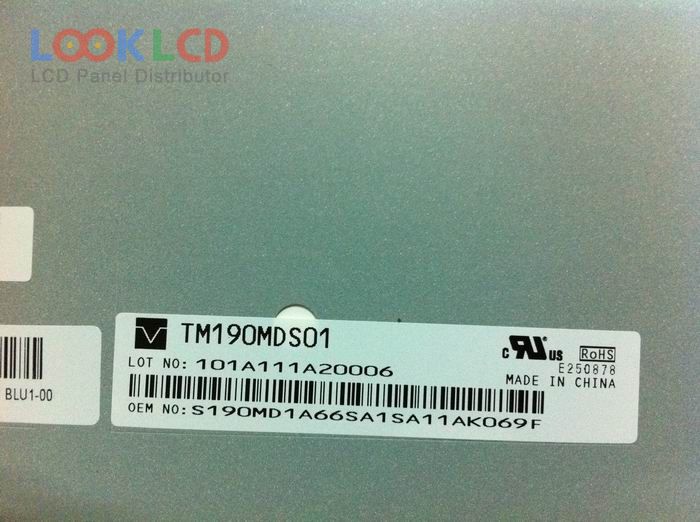

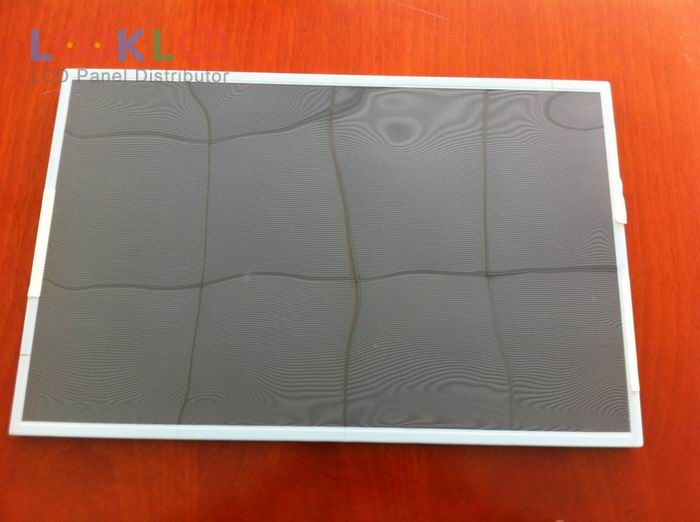

| Varenummer | TM190MDS01 |
| Mærke | Tianma |
| Størrelse | 19.0 |
| Ansøgning | DMPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | TIANMA |
| panel model | TM190MDS01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 408.24×255.15 mm |
| omrids | 428×278×10.3 mm |
| overflade | Antiglare |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193168% |
| responstid | 1.3/3.7 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S4PWLEDWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
