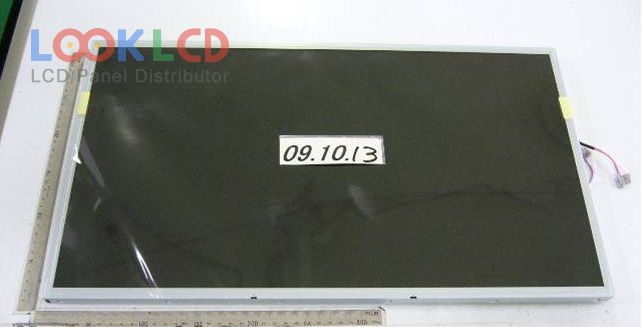

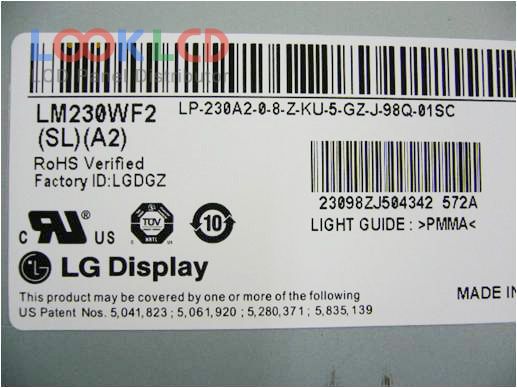

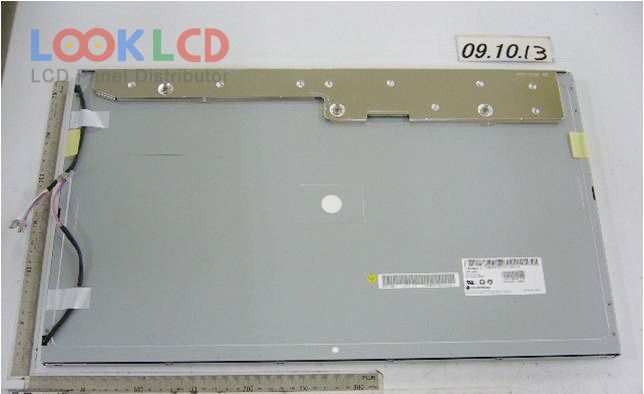

| Varenummer | LM230WF2-SLA2 |
| Mærke | LG Display |
| Størrelse | 23.0 |
| Ansøgning | DMPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LM230WF2-SLA2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 23.0 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 509.184×286.416 mm |
| omrids | 533.2×312×17.5 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 14 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | DMPC |
